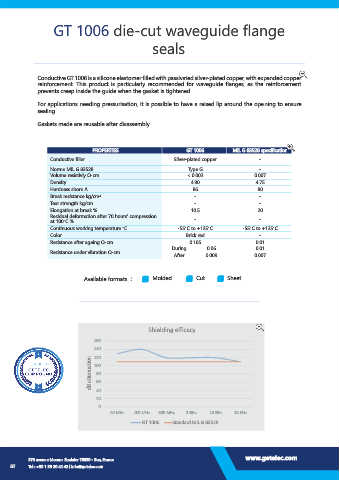

GT 1006 die-cut waveguide flange

seals

Conductive GT 1006 is a silicone elastomer filled with passivated silver-plated copper, with expanded copper
reinforcement. This product is particularly recommended for waveguide flanges, as the reinforcement
prevents creep inside the guide when the gasket is tightened.

For applications needing pressurisation, it is possible to have a raised lip around the opening to ensure
sealing.
Gaskets made are reusable after disassembly.

PROPERTIES GT 1006 MIL G 83528 specification
Conductive filler Silver-plated copper -
Norme MIL G 83528 Type G -
Volume resistiviy Ω-cm < 0.002 0.007
Density 4.90 4.75
Hardness shore A 86 80
Break resistance kg/cm² - -
Tear strength kg/cm - -
Elongation at break % 10.5 20
Residual deformation after 70 hours’ compression
at 100°C % - -
Continuous working temperature °C -55°C to +125°C -55°C to +125°C
Color Brick red -
Resistance after ageing Ω-cm 0.105 0.01
During 0.06 0.01
Resistance under vibration Ω-cm
After 0.009 0.007

Available formats : Molded Cut Sheet

Shielding efficacy
Efficacité de blindage
160
140
120
dB attenuation Atténuation dB 100
80
60
40
20
0
20 MHz 100 MHz 500 MHz 2 GHz 10 GHz 18 GHz
GT 1006 Standard MIL G 83528
GT 1006
Norme MIL G 83528
GT1000
