P. 62

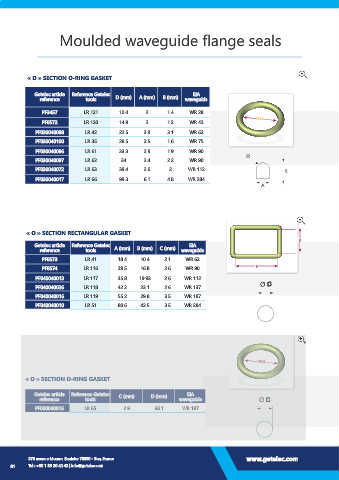

Moulded waveguide flange seals
« D » SECTION O-RING GASKET
Getelec article Reference Getelec D (mm) A (mm) B (mm) EIA
reference tools waveguide
PF3457 LR 121 10.4 2 1.4 WR 28
D int
PF8572 LR 120 14.9 2 1.2 WR 42
PF030040098 LR 42 22.5 3.9 3.1 WR 62
PF030040100 LR 35 28.5 2.5 1.6 WR 75
PF030040096 LR 61 33.3 2.9 1.9 WR 90
PF030040097 LR 62 34 2.4 2.2 WR 90
PF030040072 LR 63 39.4 2.6 2 WR 112
PF030040017 LR 66 99.3 6.1 4.8 WR 284
« O » SECTION RECTANGULAR GASKET
B
Getelec article Reference Getelec A (mm) B (mm) C (mm) EIA
reference tools waveguide
PF8573 LR 41 18.4 10.4 2.1 WR 62
PF8574 LR 116 29.5 16.8 2.6 WR 90 A
PF040040013 LR 117 35.8 19.93 2.6 WR 112
PF040040026 LR 118 42.2 23.1 2.6 WR 137 C
PF040040016 LR 119 55.2 29.8 3.5 WR 187
PF040040010 LR 51 80.6 42.5 3.5 WR 284
D int
« O » SECTION O-RING GASKET
Getelec article Reference Getelec EIA
reference tools C (mm) D (mm) waveguide C
PF030040016 LR 65 2.9 68.1 WR 187
