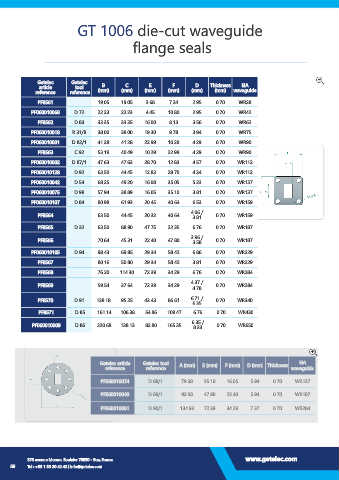

Page 60 - GETELEC catalogue US 2020

GT 1006 die-cut waveguide

flange seals

Getelec Getelec
article tool B C E F D Thickness EIA
reference reference (mm) (mm) (mm) (mm) (mm) (mm) waveguide

PF8561 19.05 19.05 3.68 7.24 2.95 0.70 WR28
PF060010068 D 72 22.23 22.23 4.45 10.80 2.95 0.70 WR42
PF8562 D 83 33.35 33.35 16.00 8.13 3.56 0.70 WR62
PF060010018 R 31/B 38.00 38.00 19.30 9.78 3.94 0.70 WR75
PF060010001 D 82/1 41.28 41.28 22.99 10.29 4.29 0.70 WR90

PF8563 C 92 53.19 40.49 10.29 22.99 4.29 0.70 WR90
PF060010002 D 87/1 47.63 47.63 28.70 12.83 4.57 0.70 WR112
PF060010128 D 92 63.50 44.45 12.83 28.70 4.34 0.70 WR112
PF060010042 D 54 68.25 49.20 16.08 35.05 5.23 0.70 WR137
PF060010075 D 99 57.94 38.89 16.05 35.10 3.81 0.70 WR137

PF060010107 D 84 80.98 61.93 20.45 40.64 6.53 0.70 WR159
PF8564 63.50 44.45 20.32 40.64 4.06 / 0.70 WR159
3.81
PF8565 D 32 63.50 88.90 47.75 22.35 6.76 0.70 WR187

PF8566 70.64 45.31 22.40 47.80 3.96 / 0.70 WR187
3.58
PF060010105 D 94 98.43 69.85 29.34 58.42 6.86 0.70 WR229

PF8567 80.16 50.80 29.34 58.42 3.81 0.70 WR229
PF8568 76.20 114.30 72.39 34.29 6.76 0.70 WR284

PF8569 59.54 37.64 72.39 34.29 4.37 / 0.70 WR284
4.78
6.71 /
PF8570 D 91 138.18 95.25 43.43 86.61 6.35 0.70 WR340

PF8571 D 85 161.14 106.38 54.86 109.47 6.76 0.70 WR430
6.35 /
PF060010009 D 86 220.68 138.13 82.80 165.35 8.33 0.70 WR650

Getelec article Getelec tool A (mm) E (mm) F (mm) D (mm) Thickness EIA
reference reference waveguide

PF060010074 D 88/1 79.38 35.10 16.05 5.94 0.70 WR137

PF060010049 D 89/1 92.08 47.80 22.40 5.94 0.70 WR187

PF060010061 D 90/1 134.93 72.39 34.29 7.37 0.70 WR284
