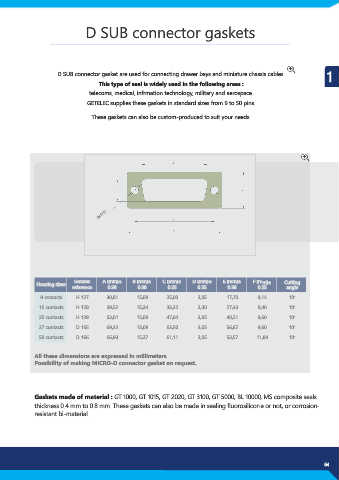

Page 55 - GETELEC catalogue US 2020

D SUB connector gaskets

D SUB connector gasket are used for connecting drawer bays and miniature chassis cables. 1

This type of seal is widely used in the following areas :
telecoms, medical, infrmation technology, military and aerospace.

GETELEC supplies these gaskets in standard sizes from 9 to 50 pins.

These gaskets can also be custom-produced to suit your needs.

2x O D

Housing sizes Getelec A (mm)± B (mm)± C (mm)± D (mm)± E (mm)± F (mm)± Cutting
reference 0.38 0.38 0.25 0.25 0.38 0.25 angle
9 contacts H 127 30,81 15,09 25,00 3,05 17,70 9,14 10°

15 contacts H 128 39,52 15,24 33,32 3,30 27,43 9,40 10°
25 contacts H 129 53,01 15,09 47,04 3,05 40,21 9,60 10°
37 contacts D 165 69,32 15,09 63,50 3,05 56,67 9,60 10°
50 contacts D 166 66,93 15,37 61,11 3,05 53,57 11,84 10°

All these dimensions are expressed in millimeters.
Possibility of making MICRO-D connector gasket on request.

Gaskets made of material : GT 1000, GT 1015, GT 2020, GT 3100, GT 5000, BL 10000, MS composite seals
thickness 0.4 mm to 0.8 mm. These gaskets can also be made in sealing fluorosilicone or not, or corrosion-
resistant bi-material.
