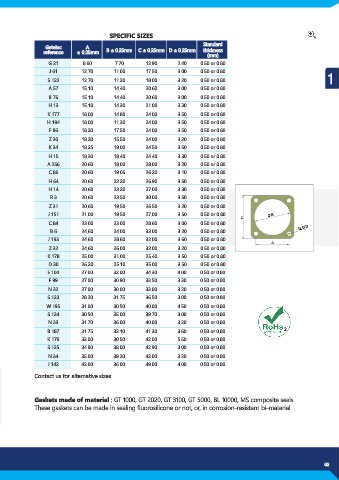

SPECIFIC SIZES
Standard
Getelec A B ± 0.25mm C ± 0.25mm D ± 0.25mm thickness
reference ± 0.25mm (mm)
G 21 8.60 7.70 12.90 2.40 0.50 or 0.80
J 61 12.70 11.00 17.50 3.00 0.50 or 0.80
S 122 12.70 11.20 18.00 3.20 0.50 or 0.80 1
A 57 15.10 14.40 20.60 3.00 0.50 or 0.80
B 76 15.10 14.40 20.60 3.00 0.50 or 0.80
H 13 15.10 14.30 21.00 3.30 0.50 or 0.80
K 177 18.00 14.80 24.00 3.50 0.50 or 0.80
H 194 18.00 11.30 24.00 3.50 0.50 or 0.80
F 86 18.20 17.50 24.00 3.50 0.50 or 0.80
Z 30 18.20 15.50 24.00 3.20 0.50 or 0.80
K 34 18.25 19.00 24.50 3.50 0.50 or 0.80
H 15 18.30 18.40 24.40 3.30 0.50 or 0.80
A 256 20.60 18.00 28.00 3.20 0.50 or 0.80
C 86 20.60 19.05 26.20 3.10 0.50 or 0.80
H 64 20.60 22.20 26.90 3.50 0.50 or 0.80
H 14 20.60 23.20 27.00 3.30 0.50 or 0.80
R 3 20.60 23.50 30.00 3.50 0.50 or 0.80
Z 31 20.60 19.50 26.50 3.20 0.50 or 0.80
J 151 21.00 19.50 27.00 3.50 0.50 or 0.80 O B
C
C 84 23.00 23.00 28.60 3.00 0.50 or 0.80
B 6 24.60 24.00 33.00 3.20 0.50 or 0.80 4x O D
J 193 24.60 28.60 32.00 3.60 0.50 or 0.80
A
Z 32 24.60 26.00 32.00 3.20 0.50 or 0.80
K 178 25.00 31.00 25.40 3.50 0.50 or 0.80
D 30 26.20 25.10 35.00 3.50 0.50 or 0.80
E 104 27.00 32.00 34.30 4.00 0.50 or 0.80
F 99 27.00 30.90 33.50 3.30 0.50 or 0.80
N 32 27.00 30.00 33.00 3.20 0.50 or 0.80
S 123 28.20 31.75 36.50 3.00 0.50 or 0.80
W 195 31.00 30.50 40.00 4.50 0.50 or 0.80
S 124 30.50 35.00 39.70 3.00 0.50 or 0.80
N 33 31.70 36.00 40.00 3.20 0.50 or 0.80
B 187 31.75 32.10 41.30 3.60 0.50 or 0.80
K 179 33.00 30.50 42.00 5.50 0.50 or 0.80
S 125 34.90 38.00 42.90 3.00 0.50 or 0.80
N 34 35.00 39.20 43.00 3.20 0.50 or 0.80
J 142 42.00 36.00 49.00 4.00 0.50 or 0.80

Contact us for alternative sizes.

Gaskets made of material : GT 1000, GT 2020, GT 3100, GT 5000, BL 10000, MS composite seals.
These gaskets can be made in sealing fluorosilicone or not, or, in corrosion-resistant bi-material.
