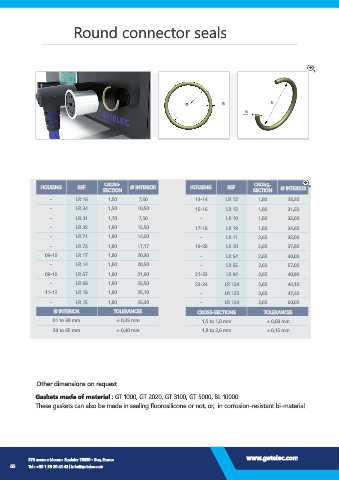

Page 54 - GETELEC catalogue US 2020

Round connector seals

D B D
B

CROSS- CROSS-
HOUSING REF. SECTION Ø INTERIOR HOUSING REF. SECTION Ø INTERIOR
- LR 16 1,50 7,60 13-14 LR 12 1,80 28,30
- LR 34 1,50 10,50 15-16 LR 13 1,80 31,50
- LR 31 1,70 7,50 - LR 10 1,80 33,00
- LR 32 1,80 12,50 17-18 LR 19 1,80 34,60
- LR 71 1,80 14,00 - LR 11 2,60 32,00
- LR 72 1,80 17,17 19-20 LR 20 2,60 37,80
09-10 LR 17 1,80 20,30 - LR 54 2,60 40,00
- LR 14 1,80 20,50 - LR 55 2,60 57,00
09-10 LR 67 1,80 21,90 21-22 LR 84 2,60 40,90
- LR 68 1,80 23,50 23-24 LR 124 2,60 44,10

11-12 LR 18 1,80 25,10 - LR 125 2,60 47,40
- LR 15 1,80 25,30 - LR 134 2,60 60,00
Ø INTERIOR TOLERANCES CROSS-SECTIONS TOLERANCES
01 to 38 mm ± 0,25 mm 1,5 to 1,8 mm ± 0,08 mm
38 to 65 mm ± 0,40 mm 1,8 to 2,6 mm ± 0,15 mm

Other dimensions on request.

Gaskets made of material : GT 1000, GT 2020, GT 3100, GT 5000, BL 10000.
These gaskets can also be made in sealing fluorosilicone or not, or, in corrosion-resistant bi-material.
