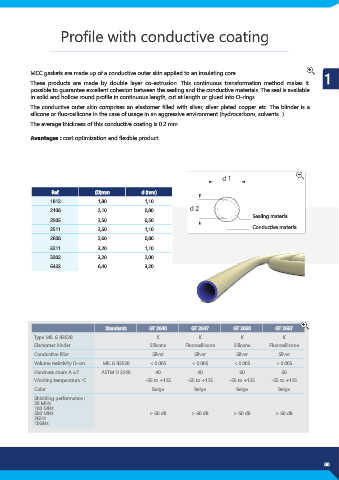

Profile with conductive coating

MCC gaskets are made up of a conductive outer skin applied to an insulating core.
These products are made by double layer co-extrusion. This continuous transformation method makes it 1

possible to guarantee excellent cohesion between the sealing and the conductive materials. The seal is available
in solid and hollow round profile in continuous length, cut at length or glued into O-rings.

The conductive outer skin comprises an elastomer filled with silver, silver plated copper etc. The blinder is a
silicone or fluorosilicone in the case of usage in an aggressive environment (hydrocarbons, solvents...)
The average thickness of this conductive coating is 0.2 mm.

Avantages : cost optimization and flexible product.

Ref. (D)mm d (mm)
1812 1,80 1,10
2108 2,10 0,80
Sealing material
2505 2,50 0,50
2511 2,50 1,10 Conductive material
2608 2,60 0,80
3211 3,20 1,10
3202 3,20 2,00
6432 6,40 3,20

Standards GT 2640 GT 2647 GT 2660 GT 2667
Type MIL G 83528 K K K K
Elastomer binder Silicone Fluorosilicone Silicone Fluorosilicone
Conductive filler Silver Silver Silver Silver
Volume resistivity Ω-cm MIL G 83528 < 0.005 < 0.005 < 0.005 < 0.005
Hardness shore A ±7 ASTM D 2240 40 40 60 60
Working temperature °C -55 to +125 -55 to +125 -55 to +125 -55 to +125
Color Beige Beige Beige Beige
Shielding performance :
20 MHz
100 MHz
500 MHz > 60 dB > 60 dB > 60 dB > 60 dB
2GHz
10GHz
