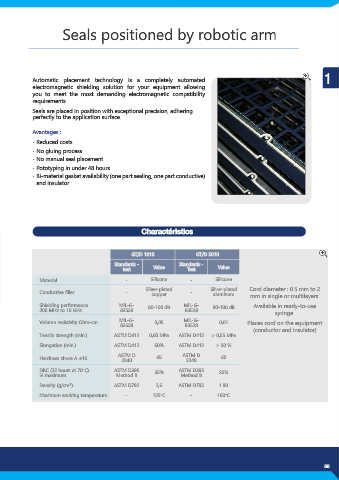

Page 57 - GETELEC catalogue US 2020

Seals positioned by robotic arm

Automatic placement technology is a completely automated 1
electromagnetic shielding solution for your equipment allowing
you to meet the most demanding electromagnetic compatibility
requirements.
Seals are placed in position with exceptional precision, adhering
perfectly to the application surface.

Avantages :
• Reduced costs
• No gluing process
• No manual seal placement
• Pototyping in under 48 hours
• Bi-material gasket availability (one part sealing, one part conductive)
and insulator.

Charactéristics

GT/D 1010 GT/D 5010
Standards - Value Standards - Value
test Test

Material - Silicone - Silicone
Silver-plated Silver-plated Cord diameter : 0.5 mm to 2
Conductive filler - copper - aluminum mm in single or multilayers.
Shielding performance MIL-G- 80-100 dB MIL-G- 80-100 dB Available in ready-to-use
200 MHz to 10 GHz 83528 83528 syringe.

Volume resistivity Ohm-cm MIL-G- 0,05 MIL-G- 0,01 Places cord on the equipment
83528 83528
(conductor and insulator)
Tensile strength (min.) ASTM D412 0,60 MPa ASTM D412 > 0,55 MPa
Elongation (min.) ASTM D412 60% ASTM D412 > 50 %
ASTM D ASTM D
Hardness shore A ±10 2240 45 2240 60
DRC (22 hours at 70°C) ASTM D395 35% ASTM D395 25%
% maximum Method B Method B
3
Density (g/cm ) ASTM D792 2,6 ASTM D792 1.90
Maximum working temperature - 125°C - 160°C
