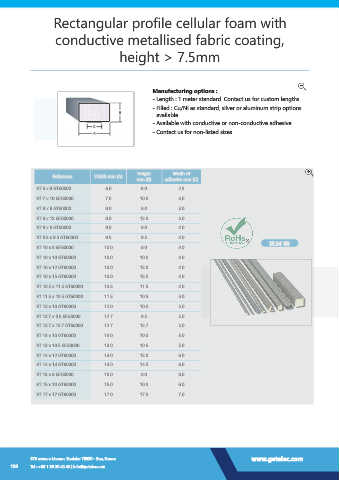

Page 124 - GETELEC catalogue US 2020
P. 124

Rectangular profile cellular foam with


                    conductive metallised fabric coating,

                                           height > 7.5mm







                                                      Manufacturing options :
                                                      - Length : 1 meter standard. Contact us for custom lengths
                                                      -  Filled : Cu/Ni as standard, silver or aluminum strip options
                                                       available.
                                                      - Available with conductive or non-conductive adhesive
                                                      - Contact us for non-listed sizes








                                                 Height
                                                              Width of
                   Reference      Width mm (A)   mm (B)    adhesive mm (C)
              RT 6 x 8 GT60000        6.0          8.0          2.5
              RT 7 x 10 GT60000       7.0         10.0          3.0
              RT 8 x 8 GT60000        8.0          8.0          3.0
              RT 8 x 12 GT60000       8.0         12.0          3.0
              RT 9 x 9 GT60000        9.0          9.0          4.0

              RT 9.5 x 9.5 GT60000    9.5          9.5          4.0
                                                                                               UL94 V0
              RT 10 x 8 GT60000       10.0         8.0          4.0
              RT 10 x 10 GT60000      10.0        10.0          4.0
              RT 10 x 12 GT60000      10.0        12.0          4.0
              RT 10 x 15 GT60000      10.0        15.0          4.0
              RT 10.5 x 11.5 GT60000  10.5        11.5          4.0
              RT 11.5 x 10.5 GT60000  11.5        10.5          5.0
              RT 12 x 10 GT60000      12.0        10.0          5.0

              RT 12.7 x 9.5 GT60000   12.7         9.5          5.0
              RT 12.7 x 12.7 GT60000  12.7        12.7          5.0
              RT 13 x 10 GT60000      13.0        10.0          5.0
              RT 13 x 10.5 GT60000    13.0        10.5          5.0
              RT 14 x 12 GT60000      14.0        12.0          6.0
              RT 14 x 14 GT60000      14.0        14.0          6.0

              RT 15 x 8 GT60000       15.0         8.0          6.0
              RT 15 x 10 GT60000      15.0        10.0          6.0
              RT 17 x 17 GT60000      17.0        17.0          7.0
