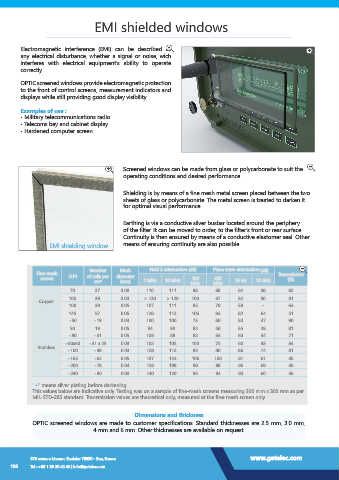

EMI shielded windows




        Electromagnetic  interference  (EMI)  can  be  described  as
        any electrical disturbance, whether  a signal  or noise, wich
        interferes with  electrical  equipment’s ability  to  operate
        correctly.

        OPTIC screened windows provide electromagnetic protection
        to the front of control screens, measurement indicators and
        displays while still providing good display visibility.

        Examples of use :
        • Military telecommunications radio
        • Telecoms bay and cabinet display
        • Hardened computer screen






                                            Screened windows can be made from glass or polycarbonate to suit the
                                            operating conditions and desired performance.


                                            Shielding is by means of a fine mesh metal screen placed between the two
                                            sheets of glass or polycarbonate. The metal screen is treated to darken it
                                            for optimal visual performance.


                                            Earthing is via a conductive silver busbar located around the periphery
                                            of the filter. It can be moved to order, to the filter’s front or rear surface.
                                            Continuity is then ensured by means of a conductive elastomer seal. Other
                  EMI shielding window      means of ensuring continuity are also possible.




              Fine-mesh         Number     Mesh      Field E attenuation (dB)  Plane wave attenuation (dB)  Transmission
               screen    O.P.I  of cells per   diameter   1 MHz  10 MHz  100   400   16 Hz  10 GHz    (%)
                                  cm²      (mm)                     MHz     MHz
                          70      27       0.08     110     111      98      68      64     38        62
                         100      39       0.03     > 120   > 120   100      67      54     50        81
               Copper
                         100      39       0.05     107     111      85      70      58      -        64
                         145      57       0.05     128     112     106      84      82      64       51
                         +50      +19      0.03     100     100      75      60      50      37       90
                          50      19       0.05      94      90      82      58      55      28       81
                         +80      +31      0.05     106      88      82      64      60      34       71
                        +80x60  +31 x 23   0.03     102     105     103      75      60      43       84
              Stainless
                         +100     +39      0.03     128     112      92      80      86      74       81
                         +165     +64      0.05     137     124     106     100      81      61       45
                         +200     +78      0.04     128     108      98      88      86      68       46
                         +230     +90      0.03     140     120      95      94      80      60       46

            "+" means silver plating before darkening
            This values below are indicative only. Testing was on a sample of fine-mesh screens measuring 300 mm x 300 mm as per
            MIL-STD-285 standard. Transmission values are theoretical only, measured at the fine-mesh screen only.


                                                Dimensions and thickness
            OPTIC screened windows are made to customer specifications. Standard thicknesses are 2.5 mm, 3.0 mm,
                                  4 mm and 6 mm. Other thicknesses are available on request.
