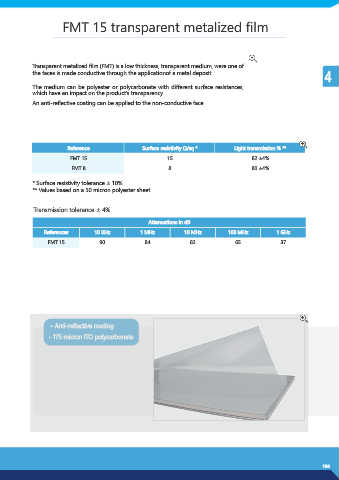

FMT 15 transparent metalized film








            Transparent metalized film (FMT) is a low thickness, transparent medium, were one of
                                                                                                                   4
            the faces is made conductive through the applicationof a metal deposit.
            The medium can be polyester or polycarbonate with different surface resistances,
            which have an impact on the product’s transparency.
            An anti-reflective coating can be applied to the non-conductive face.








                        Reference                  Surface resistivity Ω/sq *      Light transmission % **
                         FMT 15                            15                            82 ±4%
                          FMT 8                             8                            80 ±4%

            * Surface resistivity tolerance ± 10%
            ** Values based on a 50 micron polyester sheet


            Transmission tolerance ± 4%

                                                     Attenuations in dB
                References        10 KHz          1 MHz           10 MHz         100 MHz          1 GHz
                  FMT 15            90              84              82              65             37
















                   - Anti-reflective coating

                  - 175 micron ITO polycarbonate
