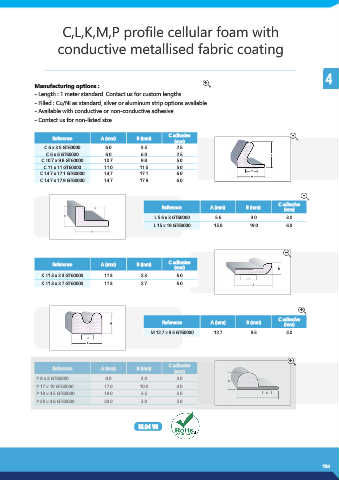

Page 125 - GETELEC catalogue US 2020
P. 125

C,L,K,M,P profile cellular foam with


                     conductive metallised fabric coating





                                                                                                                   4
             Manufacturing options :
             - Length : 1 meter standard. Contact us for custom lengths
             -  Filled : Cu/Ni as standard, silver or aluminum strip options available.
             - Available with conductive or non-conductive adhesive
             - Contact us for non-listed size



                   Reference        A (mm)       B (mm)     C adhesive
                                                              (mm)
                 C 6 x 3.5 GT60000    6.0          3.5         2.5
                 C 6 x 6 GT60000      6.0          6.0         2.5
                C 10.7 x 9.8 GT60000  10.7         9.8         5.0
                C 11 x 11 GT60000     11.0        11.0         5.0
               C 14.7 x 17.1 GT60000  14.7        17.1         6.0
               C 14.7 x 17.9 GT60000  14.7        17.9         6.0




                                                          Reference        A (mm)      B (mm)      C adhesive
                                                                                                     (mm)
                                                       L 5.6 x 3 GT60000    5.6          3.0         3.0
                                                       L 15 x 19 GT60000    15.0        19.0         6.0






                                                            C adhesive
                   Reference        A (mm)       B (mm)
                                                              (mm)
                K 11.3 x 2.3 GT60000  11.3         2.3         6.0
                K 11.3 x 2.7 GT60000  11.3         2.7         6.0






                                                                                                   C adhesive
                                                          Reference        A (mm)      B (mm)
                                                                                                     (mm)
                                                      M 12.7 x 9.5 GT60000  12.7         9.5         5.0





                                                            C adhesive
                   Reference        A (mm)       B (mm)
                                                              (mm)
              P 8 x 3 GT60000         8.0          3.0         3.0
              P 17 x 10 GT60000       17.0        10.0         4.0
              P 18 x 4.5 GT60000      18.0         4.5         5.0
              P 29 x 4.8 GT60000      29.0         4.8         5.0




                                                 UL94 V0
