P. 120

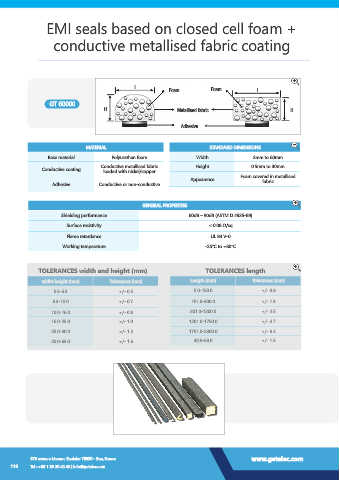

EMI seals based on closed cell foam +
conductive metallised fabric coating
l
Foam Foam l
GT 60000
H Metallised fabric H
Adhesive
MATERIAL STANDARD DIMENSIONS
Base material Polyurethan foam Width 2mm to 60mm
Conductive coating Conductive metallised fabric Height 0.5mm to 30mm
loaded with nickel/copper
Appearence Foam covered in metallised
fabric
Adhesive Conductive or non-conductive
GENERAL PROPERTIES
Shielding performance 80dB – 90dB (ASTM D 4935-89)
Surface resistivity < 0.08 Ω/sq
Flame retardance UL 94 V-0
Working temperature -25°C to +80°C
TOLERANCES width and height (mm) TOLERANCES length
widht-height (mm) Tolerances (mm) Length (mm) Tolerances (mm)
0.5-6.3 +/- 0.5 5.0-150.0 +/- 0.8
6.3-10.0 +/- 0.7 151.0-300.0 +/- 1.3
10.0-16.0 +/- 0.8 301.0-1200.0 +/- 2.5
16.0-25.0 +/- 1.0 1201.0-1750.0 +/- 4.7
25.0-40.0 +/- 1.3 1751.0-2300.0 +/- 6.4
40.0-63.0 +/- 1.6 40.0-63.0 +/- 1.6
