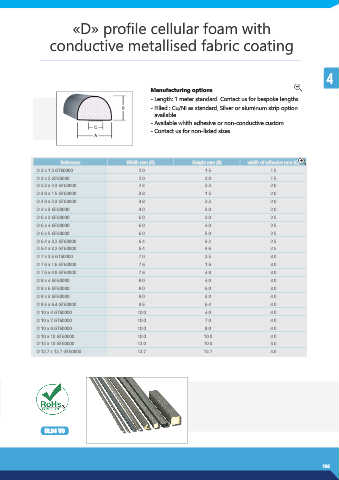

Page 121 - GETELEC catalogue US 2020

«D» profile cellular foam with

conductive metallised fabric coating

4

Manufacturing options
- Length: 1 meter standard. Contact us for bespoke lengths
- Filled : Cu/Ni as standard, Silver or aluminum strip option
available
- Available whith adhesive or non-conductive custom
- Contact us for non-listed sizes

Reference Width mm (A) Height mm (B) width of adhesive mm (C)
D 2 x 1.5 GT60000 2.0 1.5 1.5
D 2 x 2 GT60000 2.0 2.0 1.5
D 2.3 x 2.3 GT60000 2.3 2.3 2.0
D 3.8 x 1.5 GT60000 3.8 1.5 2.0
D 3.8 x 2.3 GT60000 3.8 2.3 2.0
D 4 x 3 GT60000 4.0 3.0 2.0
D 6 x 2 GT60000 6.0 2.0 2.5
D 6 x 4 GT60000 6.0 4.0 2.5
D 6 x 5 GT60000 6.0 5.0 2.5
D 6.4 x 3.2 GT60000 6.4 3.2 2.5
D 6.4 x 3.2 GT60000 6.4 3.6 2.5
D 7 x 2.5 GT60000 7.0 2.5 3.0
D 7.6 x 1.6 GT60000 7.6 1.6 3.0
D 7.6 x 4.8 GT60000 7.6 4.8 3.0
D 8 x 4 GT60000 8.0 4.0 3.0
D 8 x 6 GT60000 8.0 6.0 3.0
D 9 x 3 GT60000 9.0 3.0 4.0
D 9.5 x 6.4 GT60000 9.5 6.4 4.0
D 10 x 4 GT60000 10.0 4.0 4.0
D 10 x 7 GT60000 10.0 7.0 4.0
D 10 x 8 GT60000 10.0 8.0 4.0
D 10 x 10 GT60000 10.0 10.0 4.0
D 12 x 10 GT60000 12.0 10.0 5.0
D 12.7 x 12.7 GT60000 12.7 12.7 5.0

UL94 V0

120
