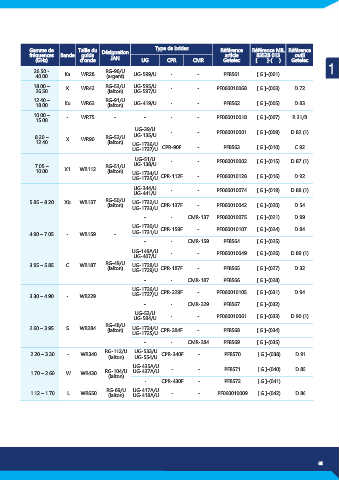

Page 63 - GETELEC - Catalogue france
P. 63
Gamme de Taille du Désignation Type de brides Référence Référence MIL Référence
fréquences Bande guide JAN article 83528 013 outil
(GHz) d’onde UG CPR CMR Getelec [ ]-( ) Getelec
26.50 - Ka WR28 RG-96/U UG-599/U - - PF8561 [ G ]-(001) 1
40.00 (argent)
18.00 – K WR42 RG-53/U UG-595/U - - PF060010068 [ G ]-(003) D 72
26.50 (laiton) UG-597/U
12.40 – RG-91/U
18.00 Ku WR62 (laiton) UG-419/U - - PF8562 [ G ]-(005) D 83
10.00 – - WR75 - - - - PF060010018 [ G ]-(007) R 31/B
15.00
UG-39/U - - PF060010001 [ G ]-(009) D 82 (1)
8.20 – RG-52/U UG-135/U
12.40 X WR90 (laiton) UG-1736/U
UG-1737/U CPR-90F - PF8563 [ G ]-(010) C 92
UG-51/U - - PF060010002 [ G ]-(015) D 87 (1)
7.05 – RG-51/U UG-138/U
10.00 X1 WR112 (laiton) UG-1734/U
UG-1735/U CPR-112F - PF060010128 [ G ]-(016) D 92
UG-344/U - - PF060010074 [ G ]-(019) D 88 (1)
UG-441/U
5.85 – 8.20 Xb WR137 RG-50/U UG-1732/U CPR-137F - PF060010042 [ G ]-(020) D 54
(laiton)
UG-1733/U
- - CMR-137 PF060010075 [ G ]-(021) D 99
UG-1730/U CPR-159F - PF060010107 [ G ]-(024) D 84
4.90 – 7.05 - WR159 - UG-1731/U
- - CMR-159 PF8564 [ G ]-(025)
UG-149A/U - - PF060010049 [ G ]-(026) D 89 (1)
UG-407/U
3.95 – 5.85 C WR187 RG-49/U UG-1728/U CPR-187F - PF8565 [ G ]-(027) D 32
(laiton)
UG-1729/U
- - CMR-187 PF8566 [ G ]-(028)
UG-1726/U CPR-229F - PF060010105 [ G ]-(031) D 94
3.30 – 4.90 - WR229 UG-1727/U
- - CMR-229 PF8567 [ G ]-(032)
UG-53/U
UG-584/U - - PF060010061 [ G ]-(033) D 90 (1)
2.60 – 3.95 S WR284 RG-48/U UG-1724/U CPR-284F - PF8568 [ G ]-(034)
(laiton)
UG-1725/U
- - CMR-284 PF8569 [ G ]-(035)
2.20 – 3.30 - WR340 RG-112/U UG-533/U CPR-340F - PF8570 [ G ]-(038) D 91
(laiton)
UG-554/U
UG-435A/U - - PF8571 [ G ]-(040) D 85
1.70 – 2.60 W WR430 RG-104/U UG-437A/U
(laiton)
- CPR-430F - PF8572 [ G ]-(041)
1.12 – 1.70 L WR650 RG-69/U UG-417A/U - - PF060010009 [ G ]-(042) D 86
UG-418A/U
(laiton)
