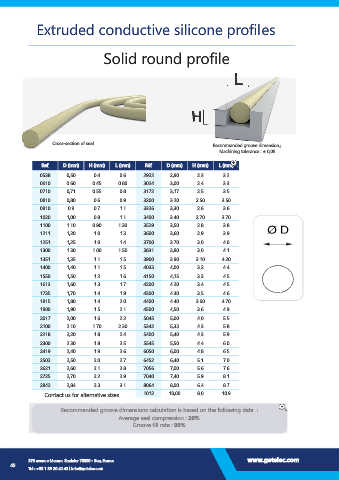

Extruded conductive silicone profiles

Solid round profile

1

Cross-section of seal Recommanded groove dimensions
Machining tolerance : ± 0,05

Ref. D (mm) H (mm) L (mm) Réf. D (mm) H (mm) L (mm)
0538 0,50 0.4 0.6 2922 2,90 2.3 3.2
0610 0.60 0.45 0.80 3024 3,00 2.4 3.3
0710 0,71 0.55 0.8 3172 3,17 2.5 3.5
0810 0,80 0.6 0.9 3200 3.20 2.50 3.50
0910 0.9 0.7 1.1 3326 3,30 2.6 3.6
1020 1,00 0.8 1.1 3400 3.40 2.70 3.70
1100 1.10 0.90 1.30 3529 3,50 2.8 3.8
1211 1,20 1.0 1.3 3600 3,60 2.9 3.9
1251 1,25 1.0 1.4 3700 3.70 3.0 4.0
1300 1.30 1.00 1.50 3831 3,80 3.0 4.1
1351 1,35 1.1 1.5 3900 3.90 3.10 4.20
1400 1,40 1.1 1.5 4033 4,00 3.2 4.4
1550 1,50 1.2 1.6 4150 4,15 3.3 4.5
1613 1,60 1.3 1.7 4200 4.20 3.4 4.5
1735 1,70 1.4 1.9 4300 4.30 3.5 4.6
1815 1,80 1.4 2.0 4400 4.40 3.60 4.70
1900 1,90 1.5 2.1 4500 4,50 3.6 4.9
2017 2,00 1.6 2.2 5045 5,00 4.0 5.5
2100 2.10 1.70 2.30 5342 5,33 4.3 5.8
2218 2,20 1.8 2.4 5400 5,40 4.3 5.9
2300 2.30 1.8 2.5 5545 5,50 4.4 6.0
2419 2,40 1.9 2.6 6050 6,00 4.8 6.5
2502 2,50 2.0 2.7 6452 6,40 5.1 7.0
2621 2,60 2.1 2.8 7056 7,00 5.6 7.6
2725 2,70 2.2 2.9 7040 7,40 5.9 8.1
2842 2,84 2.3 3.1 8064 8,00 6.4 8.7
Contact us for alternative sizes. 1012 10,00 8.0 10.9

Recommended groove dimensions calculation is based on the following data :
Average seal compression : 20%
Groove fill rate : 90%
