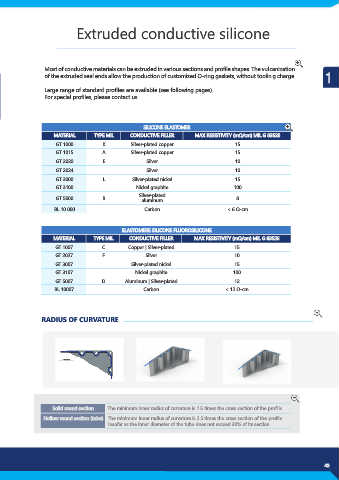

Extruded conductive silicone

Most of conductive materials can be extruded in various sections and profile shapes. The vulcanization
of the extruded seal ends allow the production of customized O-ring gaskets, without tooling charge. 1
GT 5000EX is an expanded conductive silicone elastomer filled
with silver-plated aluminum to provide low-density seals and Large range of standard profiles are available (see following pages).
conductors. Working temperature : -55°C to +160°C. For special profiles, please contact us.

SILICONE ELASTOMER
MATERIAL TYPE MIL CONDUCTIVE FILLER MAX RESISTIVITY (mΩ/cm) MIL G 83528
GT 1000 K Silver-plated copper 15
GT 1015 A Silver-plated copper 15
GT 2020 E Silver 10
GT 2024 Silver 10
GT 3000 L Silver-plated nickel 15
GT 3100 Nickel graphite 100
Silver-plated
GT 5000 B 8
aluminum
BL 10 000 Carbon < 6 Ω-cm

ELASTOMERE SILICONE FLUOROSILICONE
MATERIAL TYPE MIL CONDUCTIVE FILLER MAX RESISTIVITY (mΩ/cm) MIL G 83528
GT 1007 C Copper | Silver-plated 15
GT 2027 F Silver 10
GT 3007 Silver-plated nickel 15
GT 3107 Nickel graphite 100
GT 5007 D Aluminum | Silver-plated 12
BL 10007 Carbon < 12 Ω-cm

RADIUS OF CURVATURE

Solid round section The minimum inner radius of curvature is 1.5 times the cross section of the profile
Hollow round section (tube) The minimum inner radius of curvature is 2.5 times the cross section of the profile
insofar as the inner diameter of the tube does not exceed 30% of its section
