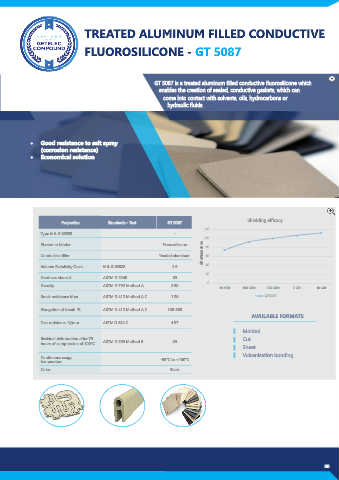

TREATED ALUMINUM FILLED CONDUCTIVE

FLUOROSILICONE - GT 5087

GT 5080 is a conductive treated aluminum filled silicone GT 5087 is a treated aluminum filled conductive fluorosilicone which
elastomer which enables the creation of sealed, conductive enables the creation of sealed, conductive gaskets, which can
gaskets. come into contact with solvents, oils, hydrocarbons or
hydraulic fluids.

• Good resistance to salt spray
(corrosion resistance)
• Economical solution

Shielding efficacy
Properties Standards - Test GT 5087
120
Type MIL G 83528 -
100
Elastomer binder Fluorosilicone 80
dB attenuation
Conductive filler Treated aluminum 60

Volume Resistivity Ω.cm MIL G 83528 2.5 40
20
Hardness shore A ASTM D 2240 80
0
Density ASTM D 792 Method A 2.50 20 MHz 100 MHz 500 MHz 2 GHz1 10 GHz
0 GHz
Break resistance Mpa ASTM D 412 Method A C 1.38 GT5087
Elongation at break % ASTM D 412 Method A C 100-300
AVAILABLE FORMATS
Tear resistance N/mm ASTM D 624 C 4.37
Molded
Residual deformation after 70 ASTM D 395 Method B 30 Cut
hours of compression at 100°C
Sheet
Continuous usage -55°C to +160°C Vulcanization bonding
temperature
Color Black
