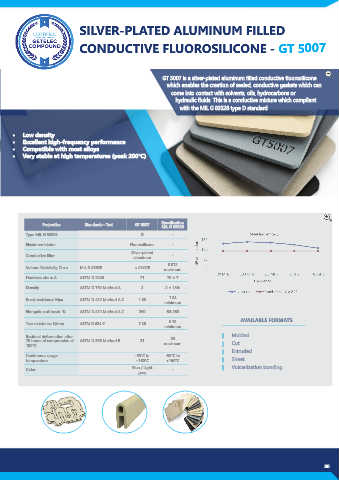

SILVER-PLATED ALUMINUM FILLED

CONDUCTIVE FLUOROSILICONE - GT 5007

GT 5000 is a conductive silver-plated aluminum filled conductive silicone GT 5007 is a silver-plated aluminum filled conductive fluorosilicone
elastomer which enables the creation of sealed, conductive gaskets. which enables the creation of sealed, conductive gaskets which can
This is a conductive mixture which is compliant with the come into contact with solvents, oils, hydrocarbons or
MIL G 83528 Type B standard. hydraulic fluids. This is a conductive mixture which compliant
with the MIL G 83528 type D standard.

• Low density
• Excellent high-frequency performance
• Compatible with most alloys
• Very stable at high temperatures (peak 200°C)

Specification
Properties Standards - Test GT 5007
MIL G 83528
Type MIL G 83528 D -
Elastomer binder Fluorosilicone -
Silver-plated
Conductive filler -
aluminum
0.012
Volume Resistivity Ω.cm MIL G 83528 < 0.0029
maximum
Hardness shore A ASTM D 2240 71 70 ± 7
Density ASTM D 792 Method A 2 2 ± 13%
1.24
Break resistance Mpa ASTM D 412 Method A C 1.85
minimum
Elongation at break % ASTM D 412 Method A C 260 60-260
6.13 AVAILABLE FORMATS
Tear resistance N/mm ASTM D 624 C 7.36
minimum
Residual deformation after 30 Molded
70 hours of compression at ASTM D 395 Method B 21
100°C maximum Cut
Extruded
Continuous usage -55°C to -55°C to
temperature +160°C +160°C Sheet
Blue / Light Vulcanization bonding
Color -
grey
