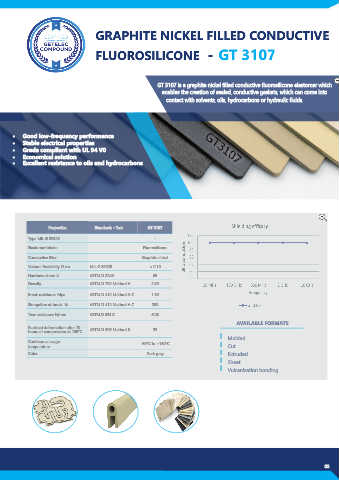

Page 33 - GETELEC catalogue US 2020

GRAPHITE NICKEL FILLED CONDUCTIVE

FLUOROSILICONE - GT 3107

GT 3100 is a conductive graphite nickel filled conductive silicone elastomer GT 3107 is a graphite nickel filled conductive fluorosilicone elastomer which
which enables the creation of sealed, conductive gaskets. This is enables the creation of sealed, conductive gaskets, which can come into
a conductive mixture with excellent low performance. contact with solvents, oils, hydrocarbons or hydraulic fluids.

• Good low-frequency performance
• Stable electrical properties
• Grade compliant with UL 94 V0
• Economical solution
• Excellent resistance to oils and hydrocarbons

Properties Standards - Test GT 3107

Type MIL G 83528 -
Elastomer binder Fluorosilicone
Conductive filler Graphite nickel
Volume Resistivity Ω.cm MIL G 83528 < 0.10
Hardness shore A ASTM D 2240 65
Density ASTM D 792 Method A 2.30
Break resistance Mpa ASTM D 412 Method A C 1.30
Elongation at break % ASTM D 412 Method A C 200
Tear resistance N/mm ASTM D 624 C 6.08
AVAILABLE FORMATS
Residual deformation after 70
hours of compression at 100°C ASTM D 395 Method B 25
Molded
Continuous usage -55°C to +150°C
temperature Cut
Color Dark grey Extruded
Sheet
Vulcanization bonding
