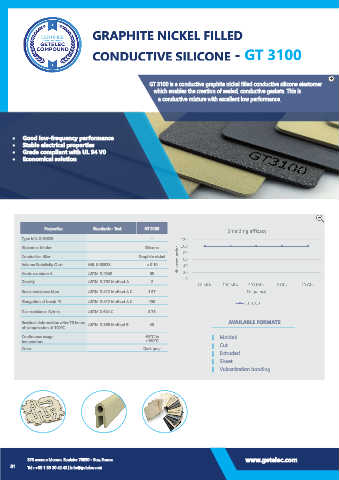

Page 32 - GETELEC catalogue US 2020

GRAPHITE NICKEL FILLED

CONDUCTIVE SILICONE - GT 3100

GT 3100 is a conductive graphite nickel filled conductive silicone elastomer
which enables the creation of sealed, conductive gaskets. This is
a conductive mixture with excellent low performance.

• Good low-frequency performance
• Stable electrical properties
• Grade compliant with UL 94 V0
• Economical solution

Properties Standards - Test GT 3100

Type MIL G 83528 -
Elastomer binder Silicone
Conductive filler Graphite nickel
Volume Resistivity Ω.cm MIL G 83528 < 0.10
Hardness shore A ASTM D 2240 65
Density ASTM D 792 Method A 2
Break resistance Mpa ASTM D 412 Method A C 1.37
Elongation at break % ASTM D 412 Method A C 150

Tear resistance N/mm ASTM D 624 C 8.73
Residual deformation after 70 hours ASTM D 395 Method B 40 AVAILABLE FORMATS
of compression at 100°C
Continuous usage -55°C to Molded
temperature +150°C
Color Dark grey Cut
Extruded
Sheet
Vulcanization bonding
