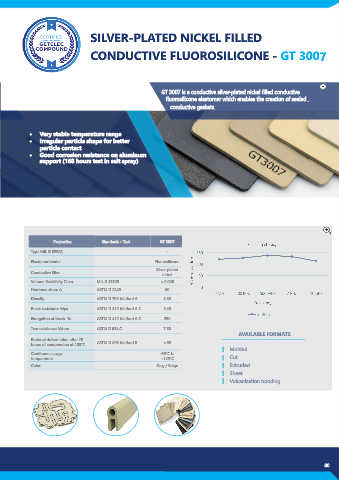

SILVER-PLATED NICKEL FILLED

CONDUCTIVE FLUOROSILICONE - GT 3007

GT 3000 is a conductive silver-plated nickel filled conductive silicone GT 3007 is a conductive silver-plated nickel filled conductive
elastomer which enables the creation of sealed, conductive gaskets. fluorosilicone elastomer which enables the creation of sealed ,
This is a conductive mixture which compliant with the MIL G 83528 conductive gaskets.
type L standards.

• Very stable temperature range
• Irregular particle shape for better
particle contact
• Good corrosion resistance on aluminum
support (168 hours test in salt spray)

Properties Standards - Test GT 3007

Type MIL G 83528 -
Elastomer binder Fluorosilicone
Conductive filler Silver-plated
nickel
Volume Resistivity Ω.cm MIL G 83528 < 0.006
Hardness shore A ASTM D 2240 60
Density ASTM D 792 Method A 3.50
Break resistance Mpa ASTM D 412 Method A C 2.40
Elongation at break % ASTM D 412 Method A C 250
Tear resistance N/mm ASTM D 624 C 7.50
AVAILABLE FORMATS
Residual deformation after 70 ASTM D 395 Method B < 35
hours of compression at 100°C
Molded
Continuous usage -55°C to
temperature +125°C Cut
Color Grey / Beige Extruded
Sheet
Vulcanization bonding
