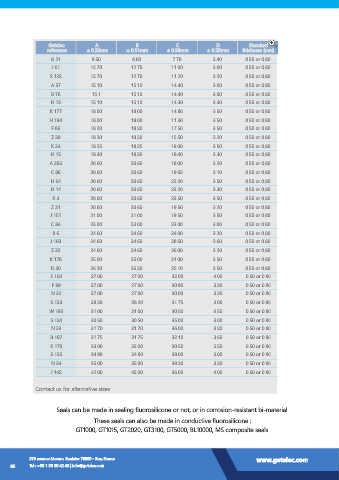

Getelec A B C D Standard
reference ± 0.25mm ± 0.51mm ± 0.38mm ± 0.25mm thickness (mm)
G 21 8.60 8.60 7.70 2.40 0.50 or 0.80
J 61 12.70 12.70 11.00 3.00 0.50 or 0.80
S 122 12.70 12.70 11.20 3.20 0.50 or 0.80
A 57 15.10 15.10 14.40 3.00 0.50 or 0.80
B 76 15.1 15.10 14.40 3.00 0.50 or 0.80
H 13 15.10 15.10 14.30 3.30 0.50 or 0.80
K 177 18.00 18.00 14.80 3.50 0.50 or 0.80
H 194 18.00 18.00 11.30 3.50 0.50 or 0.80
F 86 18.20 18.20 17.50 3.50 0.50 or 0.80
Z 30 18.20 18.20 15.50 3.20 0.50 or 0.80
K 34 18.25 18.25 19.00 3.50 0.50 or 0.80
H 15 18.30 18.30 18.40 3.30 0.50 or 0.80
A 256 20.60 20.60 18.00 3.20 0.50 or 0.80
C 86 20.60 20.60 19.05 3.10 0.50 or 0.80
H 64 20.60 20.60 22.20 3.50 0.50 or 0.80
H 14 20.60 20.60 23.20 3.30 0.50 or 0.80
R 3 20.60 20.60 23.50 3.50 0.50 or 0.80
Z 31 20.60 20.60 19.50 3.20 0.50 or 0.80
J 151 21.00 21.00 19.50 3.50 0.50 or 0.80
C 84 23.00 23.00 23.00 3.00 0.50 or 0.80
B 6 24.60 24.60 24.00 3.20 0.50 or 0.80
J 193 24.60 24.60 28.60 3.60 0.50 or 0.80
Z 32 24.60 24.60 26.00 3.20 0.50 or 0.80
K 178 25.00 25.00 31.00 3.50 0.50 or 0.80
D 30 26.20 26.20 25.10 3.50 0.50 or 0.80
E 104 27.00 27.00 32.00 4.00 0.50 or 0.80
F 99 27.00 27.00 30.90 3.30 0.50 or 0.80
N 32 27.00 27.00 30.00 3.20 0.50 or 0.80
S 123 28.20 28.20 31.75 3.00 0.50 or 0.80
W 195 31.00 31.00 30.50 4.50 0.50 or 0.80
S 124 30.50 30.50 35.00 3.00 0.50 or 0.80
N 33 31.70 31.70 36.00 3.20 0.50 or 0.80
B 187 31.75 31.75 32.10 3.60 0.50 or 0.80
K 179 33.00 33.00 30.50 5.50 0.50 or 0.80
S 125 34.90 34.90 38.00 3.00 0.50 or 0.80
N 34 35.00 35.00 39.20 3.20 0.50 or 0.80
J 142 42.00 42.00 36.00 4.00 0.50 or 0.80

Contact us for alternative sizes .

Seals can be made in sealing fluorosilicone or not, or in corrosion-resistant bi-material.
These seals can also be made in conductive fluorosilicone :
GT1000, GT1015, GT2020, GT3100, GT5000, BL10000, MS composite seals.
