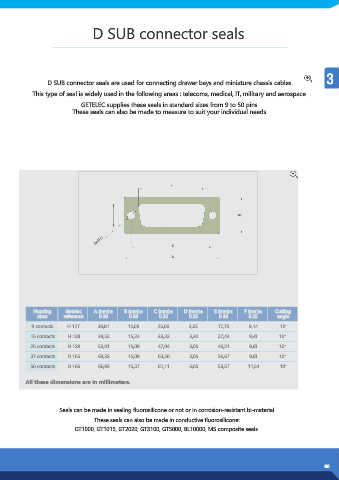

D SUB connector seals

3
D SUB connector seals are used for connecting drawer bays and miniature chassis cables.

This type of seal is widely used in the following areas : telecoms, medical, IT, military and aerospace.
GETELEC supplies these seals in standard sizes from 9 to 50 pins.
These seals can also be made to measure to suit your individual needs.

B

2x O D C

A

Housing Getelec A (mm)± B (mm)± C (mm)± D (mm)± E (mm)± F (mm)± Cutting
sizes reference 0.38 0.38 0.25 0.25 0.38 0.25 angle
9 contacts H 127 30,81 15,09 25,00 3,05 17,70 9,14 10°
15 contacts H 128 39,52 15,24 33,32 3,30 27,43 9,40 10°
25 contacts H 129 53,01 15,09 47,04 3,05 40,21 9,60 10°
37 contacts D 165 69,32 15,09 63,50 3,05 56,67 9,60 10°

50 contacts D 166 66,93 15,37 61,11 3,05 53,57 11,84 10°

All these dimensions are in millimeters.

Seals can be made in sealing fluorosilicone or not or in corrosion-resistant bi-material
These seals can also be made in conductive fluorosilicone:
GT1000, GT1015, GT2020, GT3100, GT5000, BL10000, MS composite seals.
