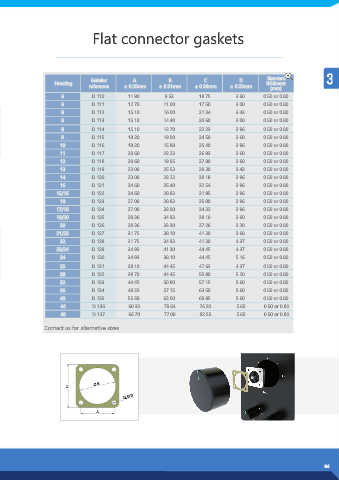

Flat connector gaskets

Getelec A B C D Standard 3
Housing thickness
reference ± 0.25mm ± 0.51mm ± 0.38mm ± 0.25mm (mm)
6 D 110 11.90 9.53 18.75 3.60 0.50 or 0.80
6 D 111 12.70 11.00 17.50 3.00 0.50 or 0.80
8 D 112 15.10 16.00 21.34 3.43 0.50 or 0.80
8 D 113 15.10 14.40 20.60 3.00 0.50 or 0.80
8 D 114 15.10 12.70 22.23 3.96 0.50 or 0.80
9 D 115 18.20 19.00 24.50 3.60 0.50 or 0.80
10 D 116 18.20 15.88 25.40 3.96 0.50 or 0.80
11 D 117 20.60 22.23 26.93 3.60 0.50 or 0.80
12 D 118 20.60 19.05 27.80 3.60 0.50 or 0.80
13 D 119 23.00 25.53 29.30 3.43 0.50 or 0.80
14 D 120 23.00 22.23 30.18 3.96 0.50 or 0.80
16 D 121 24.60 25.40 32.54 3.96 0.50 or 0.80
15/16 D 122 24.60 28.83 31.95 3.96 0.50 or 0.80
18 D 123 27.00 28.83 35.00 3.96 0.50 or 0.80
17/18 D 124 27.00 32.00 34.32 3.96 0.50 or 0.80
19/20 D 125 29.36 34.93 38.10 3.60 0.50 or 0.80
20 D 126 29.36 33.30 37.26 3.20 0.50 or 0.80
21/22 D 127 31.75 38.10 41.30 3.60 0.50 or 0.80
22 D 128 31.75 34.93 41.30 4.37 0.50 or 0.80
23/24 D 129 34.93 41.30 44.45 4.37 0.50 or 0.80
24 D 130 34.93 38.10 44.45 5.16 0.50 or 0.80
25 D 131 38.10 44.45 47.63 4.37 0.50 or 0.80
28 D 132 39.70 44.45 50.80 5.20 0.50 or 0.80
32 D 133 44.45 50.80 57.15 5.60 0.50 or 0.80
36 D 134 49.23 57.15 63.50 5.60 0.50 or 0.80
40 D 135 55.58 63.50 69.85 5.60 0.50 or 0.80
44 D 136 60.33 70.64 76.20 5.60 0.50 or 0.80
48 D 137 66.70 77.00 82.55 5.60 0.50 or 0.80

Contact us for alternative sizes.
