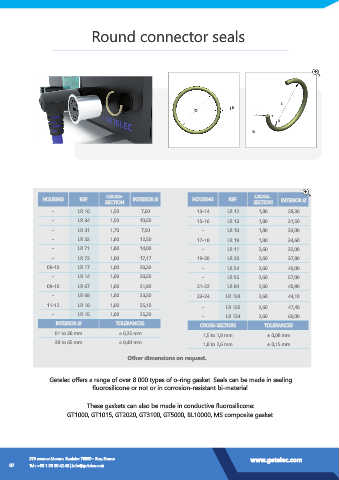

Round connector seals

D B
D
B

CROSS- CROSS-
HOUSING REF. SECTION INTERIOR Ø HOUSING REF. SECTION INTERIOR Ø

- LR 16 1,50 7,60 13-14 LR 12 1,80 28,30
- LR 34 1,50 10,50 15-16 LR 13 1,80 31,50
- LR 31 1,70 7,50 - LR 10 1,80 33,00
- LR 32 1,80 12,50 17-18 LR 19 1,80 34,60
- LR 71 1,80 14,00 - LR 11 2,60 32,00
- LR 72 1,80 17,17 19-20 LR 20 2,60 37,80
09-10 LR 17 1,80 20,30 - LR 54 2,60 40,00
- LR 14 1,80 20,50 - LR 55 2,60 57,00
09-10 LR 67 1,80 21,90 21-22 LR 84 2,60 40,90
- LR 68 1,80 23,50 23-24 LR 124 2,60 44,10
11-12 LR 18 1,80 25,10 - LR 125 2,60 47,40
- LR 15 1,80 25,30 - LR 134 2,60 60,00
INTERIOR Ø TOLERANCES CROSS-SECTION TOLERANCES
01 to 38 mm ± 0,25 mm 1,5 to 1,8 mm ± 0,08 mm
38 to 65 mm ± 0,40 mm 1,8 to 2,6 mm ± 0,15 mm

Other dimensions on request.

Getelec offers a range of over 8 000 types of o-ring gasket. Seals can be made in sealing
fluorosilicone or not or in corrosion-resistant bi-material.

These gaskets can also be made in conductive fluorosilicone:
GT1000, GT1015, GT2020, GT3100, GT5000, BL10000, MS composite gasket.
