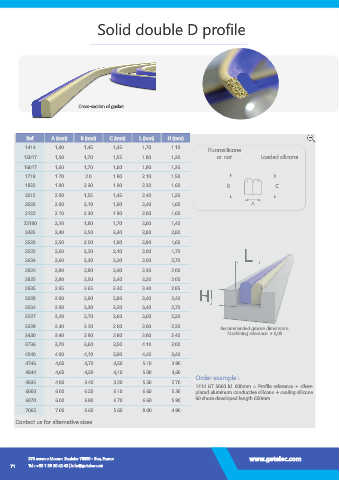

Solid double D profile

Cross-section of gasket

Ref. A (mm) B (mm) C (mm) L (mm) H (mm)
1414 1,40 1,45 1,35 1,70 1.10 Fluorosilicone
Silicone isolant uoré
or not
15017 1,50 1,70 1,55 1.80 1,30 ou non uoré Loaded silicone
Silicone chargé
16017 1,60 1,70 1,60 1,90 1,35
1718 1.70 2.0 1.80 2.10 1.50
1822 1.80 2.30 1.90 2.30 1.60 C
2015 2.00 1,55 1,45 2.40 1,20
2020 2.00 2,10 1,90 2,40 1,60
2122 2.10 2.30 1.90 2.60 1.60
22180 2,20 1,80 1,70 2,60 1,40
2435 2,40 3,50 3,30 2,80 2,80
2520 2,50 2.00 1,90 2,90 1,60
2522 2,60 2,20 2,10 3.00 1,70
2634 2,60 3,30 3,20 3.00 2,70
2824 2,80 2,80 2,40 3.30 2.00
2825 2,80 2,50 2,40 3,20 2.00
2935 2.95 3.65 3.30 3.40 2.85
3028 3.00 2,90 2,80 3,40 2,40

3034 3.00 3,30 3,20 3,40 2,70
3227 3,20 2,70 2,60 3,60 2,20
3329 3.30 3.20 2.60 3.80 2.20 Recommanded groove dimensions
3430 3.40 2.90 2.80 3.80 2.40 Machining tolerance: ± 0,05
3736 3,70 3,60 3,50 4.10 3.00
4040 4.00 4,10 3,90 4,40 3,40
4746 4,60 4,70 4,50 5.10 3.90
4844 4,60 4,30 4,10 5.00 3,60
Order example :
4835 4.80 3.40 3.20 5.30 2.70
1414 GT 5060 ld. 600mm = Profile reference + silver-
6060 6.00 6.20 6.10 6.60 5.30 plated aluminum conductive silicone + sealing silicone
60 shore developed length 600mm
6070 6.00 6.90 6.70 6.60 5.90
7065 7.00 6.60 5.60 8.00 4.90

Contact us for alternative sizes.
