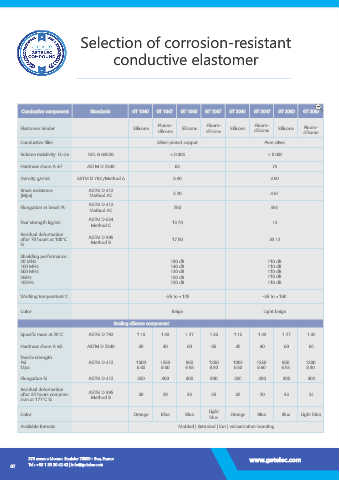

Selection of corrosion-resistant

conductive elastomer

Conductive component Standards GT 1040 GT 1047 GT 1060 GT 1067 GT 2040 GT 2047 GT 2060 GT 2067

Fluoro- Fluoro- Fluoro-
Elastomer binder Silicone Silicone Silicone Silicone Fluoro-
silicone silicone silicone silicone
Conductive filler Silver-plated copper Pure silver

Volume resistivity Ω-cm MIL G 83528 < 0.005 < 0.006

Hardness shore A ±7 ASTM D 2240 82 75
Density g/cm3 ASTM D 792 /Method A 3.40 3.90

Break resistance ASTM D 412 2.20 4.61
(Mpa) Method AC

Elongation at break % ASTM D 412 250 355
Method AC
ASTM D 624
Tear strength kg/cm 13.70 14
Method C
Residual deformation ASTM D 395
after 70 hours at 100°C Method B 17.50 33.12
%

Shielding performance :
20 MHz 130 dB 110 dB
100 MHz 140 dB 110 dB
500 MHz 120 dB 110 dB
2GHz 120 dB 110 dB
10GHz 120 dB 110 dB

Working temperature°C -55 to +125 -55 to +160

Color Beige Light beige
Sealing silicone component

Specific mass at 25°C ASTM D 792 1.10 1.43 1.27 1.46 1.10 1.43 1.27 1.46
Hardness shore A ±5 ASTM D 2240 40 40 60 60 40 40 60 60

Tensile strength
Psi ASTM D 412 1000 1250 950 1200 1000 1250 950 1200
Mpa 6.80 8.60 6.55 8.30 6.80 8.60 6.55 8.30
Elongation % ASTM D 412 500 400 300 300 500 400 300 300

Residual deformation
after 22 hours compres- ASTM D 395 30 20 33 25 30 20 33 25
sion at 177°C % Method B

Color Orange Blue Blue Light Orange Blue Blue Light blue
blue
Available formats Molded | Extruded | Cut | vulcanization-bonding
