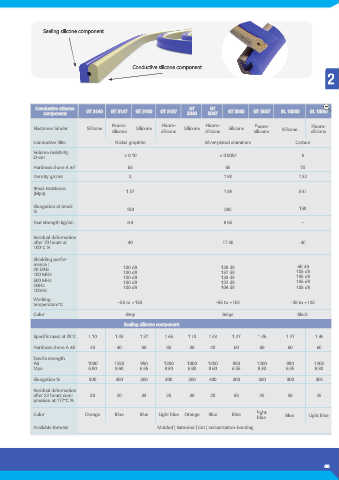

Page 69 - GETELEC catalogue US 2020

Sealing silicone component

Conductive silicone component
2

Conductive silicone GT GT
component GT 3140 GT 3147 GT 3160 GT 3167 5040 5047 GT 5060 GT 5067 BL 10060 BL 10067

Fluoro-
Elastomer binder Silicone Fluoro- Silicone Fluoro- Silicone Fluoro- Silicone Fluoro- Silicone silicone
silicone
silicone
silicone
silicone
Conductive filler Nickel graphite Silver-plated aluminum Carbon
Volume resistivity < 0.10 < 0.0054 6
Ω-cm
Hardness shore A ±7 65 65 70
Density g/cm3 2 1.90 1.22

Break resistance 1.37 1.89 4.41
(Mpa)
Elongation at break
% 150 286 150
Tear strength kg/cm 8.9 8.60 -

Residual deformation
after 70 hours at 40 17.30 40
100°C %
Shielding perfor-
mance :
20 MHz 100 dB 128 dB 60 dB
100 MHz 100 dB 137 dB 105 dB
500 MHz 100 dB 133 dB 105 dB
2GHz 100 dB 122 dB 105 dB
10GHz 100 dB 104 dB 105 dB
Working -55 to +150 -55 to +160 -55 to +125
temperature°C
Color Grey Beige Black
Sealing silicone component

Specific mass at 25°C 1.10 1.43 1.27 1.46 1.10 1.43 1.27 1.46 1.27 1.46
Hardness shore A ±5 40 40 60 60 40 40 60 60 60 60

Tensile strength
Psi 1000 1250 950 1200 1000 1250 950 1200 950 1200
Mpa 6.80 8.60 6.55 8.30 6.80 8.60 6.55 8.30 6.55 8.30
Elongation % 500 400 300 300 500 400 300 300 300 300

Residual deformation
after 22 hours com- 30 20 33 25 30 20 33 25 33 25
pression at 177°C %

Color Orange Blue Blue Light blue Orange Blue Blue Light Blue Light blue
blue
Available formats Molded | Extruded | Cut | vulcanization-bonding
