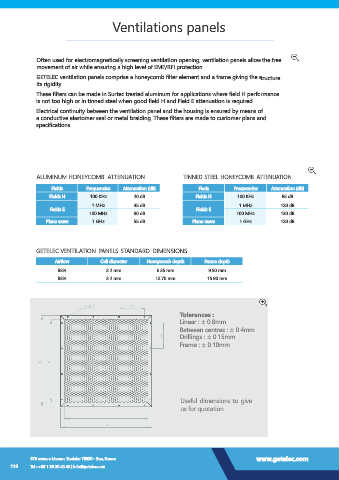

Ventilations panels

Often used for electromagnetically screening ventilation opening, ventilation panels allow the free
movement of air while ensuring a high level of EMF/RFI protection.
GETELEC ventilation panels comprise a honeycomb filter element and a frame giving the structure
its rigidity.
These filters can be made in Surtec treated aluminum for applications where field H performance
is not too high or in tinned steel when good field H and Field E attenuation is required.

Electrical continuity between the ventilation panel and the housing is ensured by means of
a conductive elastomer seal or metal braiding. These filters are made to customer plans and
specifications.

aluminum honeycomb attenuation tinned steel honeycomb attenuation
Fields Frequencies Attenuation (dB) Fieds Frequencies Attenuation (dB)
Fields H 100 KHz 20 dB Fields H 100 KHz 85 dB
1 MHz 35 dB 1 MHz 120 dB
Fields E Fields E
100 MHz 90 dB 100 MHz 130 dB
Plane wave 1 GHz 55 dB Plane wave 1 GHz 120 dB

getelec ventilation panels standard dimensions

Airflow Cell diameter Honeycomb depth Frame depth
83% 3.2 mm 6.35 mm 9.50 mm
83% 3.2 mm 12.70 mm 15.90 mm

Tolerances :
Linear : ± 0.8mm
Between centres : ± 0.4mm
Drillings : ± 0.15mm
Frame : ± 0.10mm

Useful dimensions to give
us for quotation
