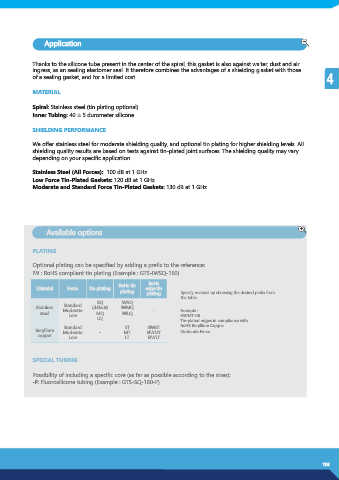

Application

Thanks to the silicone tube present in the center of the spiral, this gasket is also against water, dust and air
ingress, as an sealing elastomer seal. It therefore combines the advantages of a shielding gasket with those
of a sealing gasket, and for a limited cost. 4

MATERIAL

Spiral: Stainless steel (tin plating optional)
Inner Tubing: 40 ± 5 durometer silicone

SHIELDING PERFORMANCE

We offer stainless steel for moderate shielding quality, and optional tin plating for higher shielding levels. All
shielding quality results are based on tests against tin-plated joint surfaces. The shielding quality may vary
depending on your specific application.

Stainless Steel (All Forces): 100 dB at 1 GHz
Low Force Tin-Plated Gaskets: 120 dB at 1 GHz
Moderate and Standard Force Tin-Plated Gaskets: 130 dB at 1 GHz

Available options

PLATING

Optional plating can be specified by adding a prefix to the reference:
IW : RoHS compliant tin plating (Example : GTS-IWSQ-160)

RoHs tin RoHs
Material Force No plating edge tin
plating plating Specify material by choosing the desired prefix from
the table.
Standard SQ IWSQ
Stainless Moderate (défaut) IWMQ - Example :
steel MQ IWLQ
Low LQ EIWMT-08
Tin-plated edges in compliance with
Standard ST EIWST RoHS Beryllium Copper
Beryllium Moderate - MT EIWMT Moderate Force
copper
Low LT EIWLT

SPECIAL TUBING

Possibility of including a specific core (as far as possible according to the sizes):
-F: Fluorosilicone tubing (Example : GTS-SQ-160-F).
