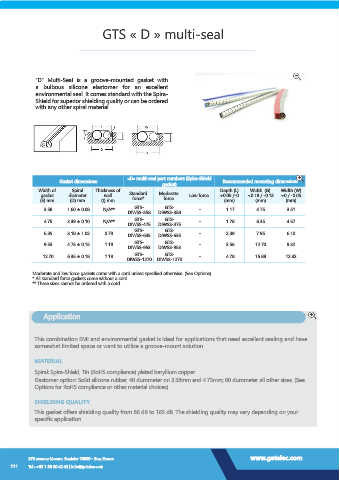

GTS « D » multi-seal

“D” Multi-Seal is a groove-mounted gasket with
a bulbous silicone elastomer for an excellent
environmental seal. It comes standard with the Spira-
Shield for superior shielding quality or can be ordered
with any other spiral material.

«D» multi-seal part numbers (Spira-Shield
Gasket dimensions Recommended mounting dimensions
gasket)
Width of Spiral Thickness of Standard Moderate Depth (L) Width (G) Width (W)
gasket diameter wall force* force Low force +0.05 /-0 +0.18 / -0.13 +0 / -0.05
(E) mm (D) mm (t) mm (mm) (mm) (mm)
GTS- GTS-
3.58 1.60 ± 0.08 N/A** - 1.17 4.75 3.51
DIWSS-358 DIWSS-358
GTS-
GTS-
4.75 2.39 ± 0.10 N/A** DIWSS-475 DIWSS-475 - 1.78 6.35 4.57
GTS- GTS-
6.35 3.18 ± 1.02 0.79 - 2.39 7.95 6.10
DIWSS-635 DIWSS-635
GTS-
GTS-
9.53 4.75 ± 0.15 1.19 DIWSS-953 DIWSS-953 - 3.56 12.70 9.32
GTS- GTS-
12.70 6.35 ± 0.18 1.19 - 4.78 15.88 12.32
DIWSS-1270 DIWSS-1270
Moderate and low force gaskets come with a cord unless specified otherwise. (See Options).
* All standard force gaskets come without a cord.
** These sizes cannot be ordered with a cord.

Application

This combination EMI and environmental gasket is ideal for applications that need excellent sealing and have
somewhat limited space or want to utilize a groove-mount solution.

MATERIAL

Spiral: Spira-Shield, Tin (RoHS compliance) plated beryllium copper.
Elastomer option: Solid silicone rubber, 40 durometer on 3.58mm and 4.75mm; 60 durometer all other sizes. (See
Options for RoHS compliance or other material choices).

SHIELDING QUALITY
This gasket offers shielding quality from 86 dB to 165 dB. The shielding quality may vary depending on your
specific application.
