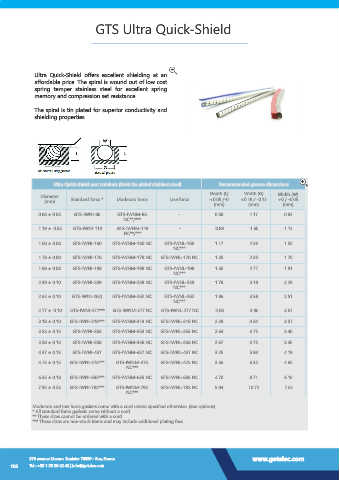

Page 106 - GETELEC catalogue US 2020

GTS Ultra Quick-Shield

Ultra Quick-Shield offers excellent shielding at an
affordable price. The spiral is wound out of low cost
spring temper stainless steel for excellent spring
memory and compression set resistance.

The spiral is tin plated for superior conductivity and
shielding properties.

Ultra Quick-shield part numbers (RoHs tin plated stainless steel) Recommended groove dimensions
Depth (L) Width (G) Width (W)
Diameter Standard force * Moderate force Low force +0.05 /-0 +0.18 / -0.13 +0 / -0.05
(mm)
(mm) (mm) (mm)
0.86 ± 0.05 GTS-IWNI-86 GTS-IWNM-86 - 0.58 1.17 0.84
NC**/***
1.19 ± .0.05 GTS-IWNI-119 GTS-IWNM-119 - 0.89 1.60 1.14
NC**/***
1.60 ± 0.08 GTS-IWNI-160 GTS-IWNM-160 NC GTS-IWNL-160 1.17 2.39 1.52
NC***
1.78 ± 0.08 GTS-IWNI-178 GTS-IWNM-178 NC GTS-IWNL-178 NC 1.35 2.39 1.70
1.98 ± 0.08 GTS-IWNI-198 GTS-IWNM-198 NC GTS-IWNL-198 1.50 2.77 1.91
NC***
2.39 ± 0.10 GTS-IWNI-239 GTS-IWNM-239 NC GTS-IWNL-239 1.78 3.18 2.29
NC***
2.62 ± 0.10 GTS-IWNI-262) GTS-IWNM-262 NC GTS-IWNL-262 1.96 3.58 2.51
NC***
2.77 ± .0.10 GTS-IWNI-277*** GTS-IWNM-277 NC GTS-IWNL-277 NC 2.08 3.96 2.67

3.18 ± 0.10 GTS-IWNI-318*** GTS-IWNM-318 NC GTS-IWNL-318 NC 2.39 4.34 3.07
3.53 ± 0.13 GTS-IWNI-353 GTS-IWNM-353 NC GTS-IWNL-353 NC 2.64 4.75 3.40
3.58 ± 0.13 GTS-IWNI-358 GTS-IWNM-358 NC GTS-IWNL-358 NC 2.67 4.75 3.45
4.37 ± 0.13 GTS-IWNI-437 GTS-IWNM-437 NC GTS-IWNL-437 NC 3.25 5.94 4.19

4.75 ± 0.15 GTS-IWNI-475*** GTS-IWNM-475 GTS-IWNL-475 NC 3.56 6.35 4.60
NC***
6.35 ± 0.18 GTS-IWNI-635*** GTS-IWNM-635 NC GTS-IWNL-635 NC 4.70 8.71 6.10
7.92 ± 0.23 GTS-IWNI-792*** GTS-IWNM-792 GTS-IWNL-792 NC 5.94 10.72 7.62
NC***

Moderate and low force gaskets come with a cord unless specified otherwise. (See options).
* All standard force gaskets come without a cord.
** These sizes cannot be ordered with a cord.
*** These sizes are non-stock items and may include additional plating fees.
