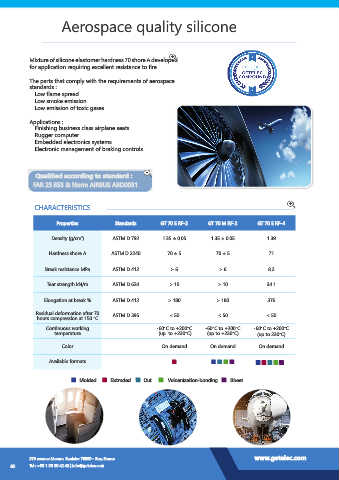

Page 84 - GETELEC catalogue US 2020
P. 84
Aerospace quality silicone
Mixture of silicone elastomer hardness 70 shore A developed
for application requiring excellent resistance to fire.
The parts that comply with the requirements of aerospace
standards :
✔ Low flame spread
✔ Low smoke emission
✔ Low emission of toxic gases
Applications :
✔ Finishing business class airplane seats
✔ Rugger computer
✔ Embedded electronics systems
✔ Electronic management of braking controls
Qualified according to standard :
FAR 25.853 & Norm AIRBUS ABD0031
CHARACTERISTICS
Properties Standards GT 70 E RF-2 GT 70 M RF-2 GT 70 E RF-4
Density (g/cm ) ASTM D 792 1.35 ± 0.05 1.35 ± 0.05 1.39
3
Hardness shore A ASTM D 2240 70 ± 5 70 ± 5 71
Break resistance MPa ASTM D 412 > 6 > 6 8.2
Tear strength kN/m ASTM D 624 > 10 > 10 34.1
Elongation at break % ASTM D 412 > 180 > 180 376
Residual deformation after 70 ASTM D 395 < 50 < 50 < 50
hours compression at 150 °C
Continuous working -60°C to +200°C -60°C to +200°C -60°C to +200°C
temperature (up to +230°C) (up to +230°C) (up to 230°C)
Color On demand On demand On demand
Available formats
Molded Extruded Cut Vulcanization-bonding Sheet
