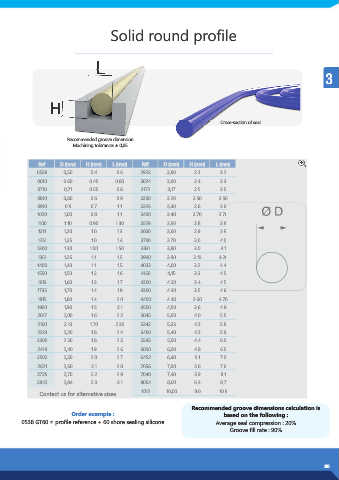

Solid round profile
3
Cross-section of seal
Recommended groove dimension
Machining tolerance: ± 0,05
Ref. D (mm) H (mm) L (mm) Réf. D (mm) H (mm) L (mm)
0538 0,50 0.4 0.6 2922 2,90 2.3 3.2
0610 0.60 0.45 0.80 3024 3,00 2.4 3.3
0710 0,71 0.55 0.8 3172 3,17 2.5 3.5
0810 0,80 0.6 0.9 3200 3.20 2.50 3.50
0910 0.9 0.7 1.1 3326 3,30 2.6 3.6
1020 1,00 0.8 1.1 3400 3.40 2.70 3.70
1100 1.10 0.90 1.30 3529 3,50 2.8 3.8
1211 1,20 1.0 1.3 3600 3,60 2.9 3.9
1251 1,25 1.0 1.4 3700 3.70 3.0 4.0
1300 1.30 1.00 1.50 3831 3,80 3.0 4.1
1351 1,35 1.1 1.5 3900 3.90 3.10 4.20
1400 1,40 1.1 1.5 4033 4,00 3.2 4.4
1550 1,50 1.2 1.6 4150 4,15 3.3 4.5
1613 1,60 1.3 1.7 4200 4.20 3.4 4.5
1735 1,70 1.4 1.9 4300 4.30 3.5 4.6
1815 1,80 1.4 2.0 4400 4.40 3.60 4.70
1900 1,90 1.5 2.1 4500 4,50 3.6 4.9
2017 2,00 1.6 2.2 5045 5,00 4.0 5.5
2100 2.10 1.70 2.30 5342 5,33 4.3 5.8
2218 2,20 1.8 2.4 5400 5,40 4.3 5.9
2300 2.30 1.8 2.5 5545 5,50 4.4 6.0
2419 2,40 1.9 2.6 6050 6,00 4.8 6.5
2502 2,50 2.0 2.7 6452 6,40 5.1 7.0
2621 2,60 2.1 2.8 7056 7,00 5.6 7.6
2725 2,70 2.2 2.9 7040 7,40 5.9 8.1
2842 2,84 2.3 3.1 8064 8,00 6.4 8.7
Contact us for alternative sizes. 1012 10,00 8.0 10.9
Recommended groove dimensions calculation is
Order example : based on the following :
0538 GT60 = profile reference + 60 shore sealing silicone Average seal compression : 20%
Groove fill rate : 90%
