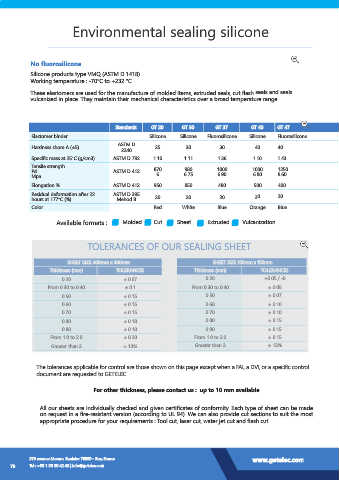

Environmental sealing silicone

No fluorosilicone
Silicone products type VMQ (ASTM D 1418)
Working temperature : -70°C to +232 °C
These elastomers are used for the manufacture of molded items, extruded seals, cut flash seals and seals
vulcanized in place. Thay maintain their mechanical characteristics over a broad temperature range.

Standards GT 20 GT 30 GT 37 GT 40 GT 47 GT 50 GT 57 GT 60 GT 67 GT 70 GT 77 GT 80
Elastomer binder Silicone Silicone Fluorosilicone Silicone Fluorosilicone Silicone Fluorosilicone Silicone Fluorosilicone Silicone Fluorosilicone Silicone
ASTM D
Hardness shore A (±5) 2240 25 30 30 40 40 50 50 60 60 70 70 80
Specific mass at 25°C (g/cm3) ASTM D 792 1.10 1.11 1.36 1.10 1.43 1.19 1.44 1.27 1.46 1.35 1.48 1.43
Tensile strength 870 980 1000 1000 1250 980 1200 950 1200 1000 1250 965
Psi ASTM D 412 6 6.75 6.90 6.80 8.60 6.75 8.45 6.55 8.30 6.89 8.60 6.65
Mpa
Elongation % ASTM D 412 950 850 480 500 400 380 350 300 300 180 300 165
Residual deformation after 22 ASTM D 395 32 25 33 25 34 25 35
hours at 177°C (%) Mehod B 20 20 20 30 20
Color Red White Blue Orange Blue Red Blue Blue Blue Red Blue Red

Available formats : Molded Cut Sheet Extruded Vulcanization

TOLERANCES OF OUR SEALING SHEET

SHEET SIZE 300mm x 300mm SHEET SIZE 150mm x 150mm
Thickness (mm) TOLERANCES Thickness (mm) TOLERANCES
0.20 ± 0.07 0.20 +0.05 / -0
From 0.30 to 0.40 ± 0.1 From 0.30 to 0.40 ± 0.05
0.50 ± 0.15 0.50 ± 0.07
0.60 ± 0.15 0.60 ± 0.10
0.70 ± 0.15 0.70 ± 0.10
0.80 ± 0.18 0.80 ± 0.15
0.90 ± 0.18 0.90 ± 0.15
From 1.0 to 2.0 ± 0.20 From 1.0 to 2.0 ± 0.15
Greater than 2 ± 13% Greater than 2 ± 13%

The tolerances applicable for control are those shown on this page except when a FAI, a DVI, or a specific control
document are requested to GETELEC.

For other thickness, please contact us : up to 10 mm available

All our sheets are individually checked and given certificates of conformity. Each type of sheet can be made
on request in a fire-resistant version (according to UL 94). We can also provide cut sections to suit the most
appropriate procedure for your requirements : Tool cut, laser cut, water jet cut and flash cut.
