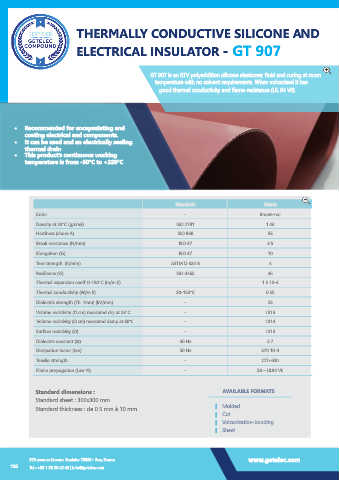

Page 136 - GETELEC catalogue US 2020

THERMALLY CONDUCTIVE SILICONE AND

ELECTRICAL INSULATOR - GT 907

GT 907 is an RTV polyaddition silicone elastomer, fluid and curing at room
temperature with no solvent requirements. When vulcanised it has
good thermal conductivity and flame-resistance (UL 94 V0).

• Recommended for encapsulating and
coating electrical and components.
• It can be used and an electrically sealing
thermal drain
• This product’s continuous working
temperature is from -50°C to +220°C

Standards Values
Color - Brown-red
Density at 23°C (g/cm3) ISO 2781 1.43
Hardness (shore A) ISO 868 55

Break resistance (N/mm) ISO 37 3.5
Elongation (%) ISO 37 10
Tear strength (N/mm) ASTM D 624 B 4
Resilience (%) ISO 4462 45
Thermal expansion coeff. 0-150°C (m/m.K) 1.5 10-4
Thermal conductivity (W/m.K) 20-150°C 0.55

Dielectric strength (Th. 1mm) (kV/mm) - 23
Volume resistivity (Ω.cm) measured dry at 23°C - 1015
Volume resistivity (Ω.cm) measured damp at 60°C - 1014
Surface resistivity (Ω) - 1013
Dielectric constant (Σr) 50 Hz 3.7
Dissipation factor (tan) 50 Hz 370 10-4
Tensile strength - CTI>600
Flame propagation (Law %) - 28 – UL94 V0

Standard dimensions : AVAILABLE FORMATS
Standard sheet : 300x300 mm
Standard thickness : de 0.5 mm à 10 mm Molded
Cut
Vulcanization-bonding
Sheet
