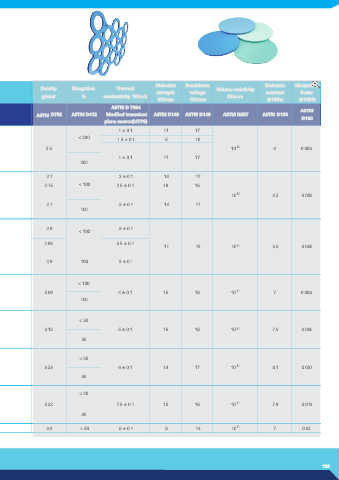

Page 133 - GETELEC catalogue US 2020

Dielectric Breakdown Dielectric Dissipation
Thermal Equivalent New Color Hardness Thickness Flame RoHs Working temperature (°C) Density Elongation Thermal strength voltage Volume resistivity constant factor
conductivity reference Shore 00 mm retardant g/cm3 % conductivity W/m.k Ohm.m
kV/mm kV/mm @1Mhz @1MHz
ASTM D 7984
ASTM ASTM
Standards UL 94 ASTM D792 ASTM D412 Modfied transcient ASTM D149 ASTM D149 ASTM D257 ASTM D150
D2240 D150
plane source(MTPS)
GTG 1-40 40 ± 2 1 ± 0.1 11 17
GTG 9005 GTG 1.3-45* 45 ± 2 < 200 1.3 ± 0.1 5 18
1 W/m.K GTG 1-60 Grey 60 ± 2 0.5 to 20 V0 Yes -60°C to +200°C 2.6 10 13 4 0.006
mm
GTG 1-75 75 ± 2 1 ± 0.1 11 17
200
GTG 1-85 85 ± 2
GTG 2-40 40 ± 2 2.7 2 ± 0.1 14 17
GTG 9010 GTG 2.5-50 50 ± 2 2.75 < 100 2.5 ± 0.1 18 16
0.5 to 20
2 W/m.K GTG 2-60 Blue 60 ± 2 V0 Yes -45 °C to +200°C 10 12 4.2 0.005
mm
GTG 2-75 75 ± 2 2.7 2 ± 0.1 14 17
100
GTG 2-85 85 ± 2
GTG 9017 GTG 3-35 35 ± 2
2.9 3 ± 0.1
GTG 3-40 40 ± 2 < 100

GTG 9018 GTG 3.5-50 50 ± 2 0.5 to 20 2.95 3.5 ± 0.1
3 W/m.K Light blue V0 Yes -40°C to + 200 °C 11 15 10 11 5.5 0.005
GTG 3-60 60 ± 2 mm
GTG 9015 GTG 3-75 75 ± 2 2.9 100 3 ± 0.1
GTG 3-85 85 ± 2
GTG 4-40 40 ± 2
< 100
GTG 4-60 60 ± 2 0.8 to 20
4 W/m.K Green V0 Yes -40°C to + 200 °C 3.09 4 ± 0.1 16 18 10 11 7 0.008
GTG 9019 GTG 4-75 75 ± 2 mm
100
GTG 4-85 85 ± 2
GTG 5-40 40 ± 2
< 50
GTG 5-60 60 ± 2 0.8 to 20
5 W/m.K Green V0 Yes -40°C to +200°C 3.12 5 ± 0.1 15 18 10 11 7.5 0.006
GTG 5-75 75 ± 2 mm
50
GTG 5-85 85 ± 2
GTG 6-40 40 ± 2
< 50
GTG 9021 GTG 6-55 55 ± 2 0.8 to 20
6 W/m.K Green V0 Yes -40°C to +200°C 3.23 6 ± 0.1 14 17 10 11 8.1 0.007
GTG 6-75 75 ± 2 mm
50
GTG 6-85 85 ± 2
GTG 9025 GTG 7.5-35 35 ± 2
< 40
GTG 7.5-55 55 ± 2 0.8 to 20
7 W/m.K Light grey V0 Yes -40°C to +200°C 3.22 7.5 ± 0.1 10 16 10 11 7.9 0.013
GTG 7.5-75 75 ± 2 mm
40
GTG 7.5-85 85 ± 2
8 W/m.K GTG 8-65 Light grey 65 ± 2 1 to 20 mm V0 Yes -40°C to +200°C 3.3 < 30 8 ± 0.1 8 14 10 11 7 0.02
