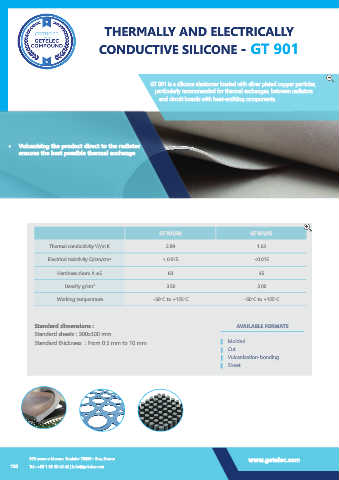

Page 134 - GETELEC catalogue US 2020
P. 134
THERMALLY AND ELECTRICALLY
CONDUCTIVE SILICONE - GT 901
GT 901 is a silicone elastomer loaded with silver plated copper particles,
particularly recommended for thermal exchanges, between radiators
and circuit boards with heat-emitting components.
• Vulcanising the product direct to the radiator
ensures the best possible thermal exchange
GT 901/60 GT 901/45
Thermal conductivity W/m.K 2.89 1.63
Electrical resistivity Ω/cm/cm² < 0.015 <0.015
Hardness shore A ±5 60 45
Density g/cm 3 3.50 3.00
Working temperature -50°C to +125°C -50°C to +125°C
Standard dimensions : AVAILABLE FORMATS
Standard sheets : 300x300 mm
Standard thickness : From 0.5 mm to 10 mm Molded
Cut
Vulcanization-bonding
Sheet
