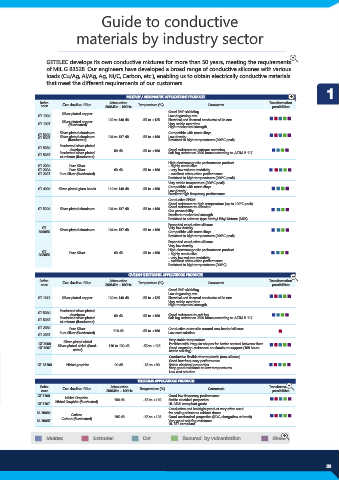

Page 23 - GETELEC catalogue US 2020

Guide to conductive

materials by industry sector

GETELEC develops its own conductive mixtures for more than 50 years, meeting the requirements
of MIL G 83528. Our engineers have developed a broad range of conductive silicones with various
loads (Cu/Ag, Al/Ag, Ag, Ni/C, Carbon, etc.), enabling us to obtain electrically conductive materials
that meet the different requirements of our customers.
1

MILITARY / AERONAUTIC APPLICATIONS PRODUCTS
Refer- Attenuation Transformation
ence Conductive filler 200MHz – 10GHz Temperature (°C) Comments possibilities
Good EMP shielding
GT 1000 Silver-plated copper Low degassing rate.
Very stable over time.
GT 1007 Silver-plated copper 120 to 140 dB -55 to +125 Electrical and thermal conductor all in one.
(fluorinated) High mechanical strength.
Silver-plated aluminum Compatible with most alloys.
GT 5000 Silver-plated aluminum 104 to 137 dB -55 to +160 Low density
GT 5007
(fluorinated) Resistant to high temperatures (200°C peak)
GT 5080 Passivated silver-plated Good resistance to extreme corrosion
aluminum
Passivated silver-plated 80 dB -55 to +160 Salt fog resistance 2500 hours according to ASTM B 117
GT 5087 aluminum (fluorinated)
High electromagnetic performance product
GT 2020 Pure Silver - highly conductive
GT 2024 Pure Silver 60 dB -55 to +160 - very low volume resistivity
GT 2027 Pure Silver (fluorinated) - excellent attenuation performance
Resistant to high temperatures (200°C peak)
Very stable temperature (200°C peak)
GT 4000 Silver-plated glass beads 110 to 140 dB -55 to +160 Compatible with most alloys
Low density
Excellent high frequency performance
Conductive EPDM
Good resistance to high temperature (up to 190°C peak)
GT 5200 Silver-plated aluminum 104 to 137 dB -55 to +160 Good resistance to abrasion.
Gas permeability
Excellent mechanical strength
Resistant to solvents type Methyl Ethyl Ketone (MEK).
Expanded conductive silicone
GT Silver-plated aluminum 104 to 137 dB -55 to +160 Very low density
5000EX Compatible with most alloys
Resistant to high temperatures (200°C peak)
Expanded conductive silicone
Very low density
GT High electromagnetic performance product
2020EX Pure Silver 60 dB -55 to +160 - highly conductive
- very low volume resistivity
- excellent attenuation performance
Resistant to high temperatures (200°C)
CIVILIAN ELECTRONIC APPLICATIONS PRODUCTS
Refer- Conductive filler Attenuation Temperature (°C) Comments Transformation
ence 200MHz – 10GHz possibilities
Good EMP shielding
Low degassing rate.
GT 1015 Silver-plated copper 120 to 140 dB -55 to +125 Electrical and thermal conductor all in one.
Very stable over time.
High mechanical strength.
GT 5080 Passivated silver-plated 80 dB -55 to +160 Good resistance to salt fog
aluminum
GT 5087 Passivated silver-plated Salt fog resistance 2500 hours according to ASTM B 117
aluminum (fluorinated)
GT 2660 Pure Silver Conductive outer skin around non-loaded silicone
Pure Silver (fluorinated) 110 dB -55 to +160 Low cost solution
GT 2667
Very stable temperature
GT 3000 Silver-plated nickel Particles with irregular shapes for better contact between them
GT 3007 Silver-plated nickel (fluori- 110 to 130 dB -55 to +125 Good corrosion-resistance on aluminum support (168 hours
nated)
test in salt fog)
Conductive flexible thermoplastic (non-silicone)
Good low frequency performance
GT 13100 Nickel graphite 90 dB -35 to +90 Stable electrical properties
Very good resistance to low temperatures
Low cost solution
TELECOMS APPLICATIONS PRODUCTS
Refer- Attenuation Transformation
ence Conductive filler 200MHz – 10GHz Temperature (°C) Comments possibilities
GT 3100 Nickel Graphite Good low frequency performance.
Nickel Graphite (fluorinated) 100 dB -55 to +150 Stable electrical properties
GT 3107 UL 94V0 compliant grade
Conductive and leaktight product very often used
BL 10000 Carbon for sealing telecoms cabinet doors.
Very good salt fog resistance
BL 10007 Carbon (fluorinated) 105 dB -55 to +125 Good mechanical properties (RDC, elongation at break)
UL 157 compliant
Molded Extruded Cut Secured by vulcanization Sheet
