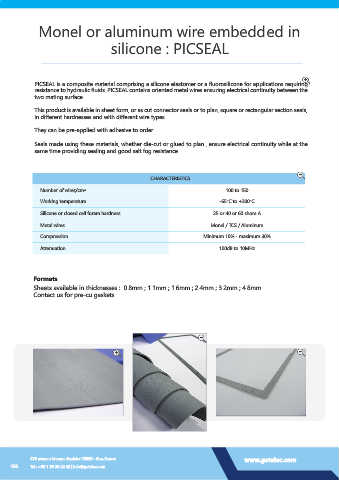

Page 156 - GETELEC catalogue US 2020
P. 156
Monel or aluminum wire embedded in
silicone : PICSEAL
PICSEAL is a composite material comprising a silicone elastomer or a fluorosilicone for applications requiring
resistance to hydraulic fluids. PICSEAL contains oriented metal wires ensuring electrical continuity between the
two mating surface.
This product is available in sheet form, or as cut connector seals or to plan, square or rectangular section seals,
in different hardnesses and with different wire types.
They can be pre-applied with adhesive to order.
Seals made using these materials, whether die-cut or glued to plan , ensure electrical continuity while at the
same time providing sealing and good salt fog resistance.
CHARACTERISTICS
Number of wires/cm² 100 to 150
Working temperature -65°C to +200°C
Silicone or closed cell foram hardness 25 or 40 or 60 shore A
Metal wires Monel / TCS / Aluminum
Compression Minimum 10% - maximum 30%
Attenuation 100dB to 10MHz
Formats
Sheets available in thicknesses : 0.8mm ; 1.1mm ; 1.6mm ; 2.4mm ; 3.2mm ; 4.8mm.
Contact us for pre-cu gaskets.
