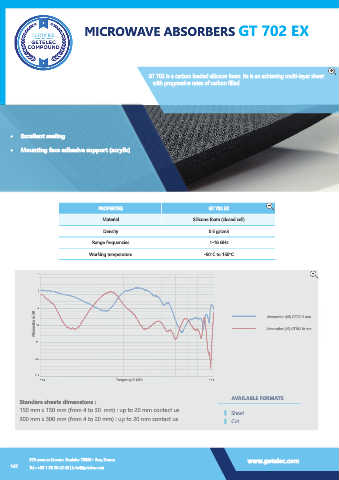

MICROWAVE ABSORBERS GT 702 EX
GT 702 is a carbon loaded silicone foam. Its is an achieving multi-layer sheet
with progressive rates of carbon filled.
• Excellent sealing
• Mounting face adhesive support (acrylic)
PROPERTIES GT 702 EX
Material Silicone foam (closed cell)
Density 0.5 g/cm3
Range frequencies 1-18 GHz
Working temperature -50°C to 150°C
Attenuation in dB Attenuation (dB) GT702 10 mm
Attenuation (dB) GT702 5 mm
Frequency in MHz
AVAILABLE FORMATS
Standars sheets dimensions :
150 mm x 150 mm (from 4 to 30. mm) : up to 20 mm contact us Sheet
300 mm x 300 mm (from 4 to 20 mm) : up to 20 mm contact us Cut
