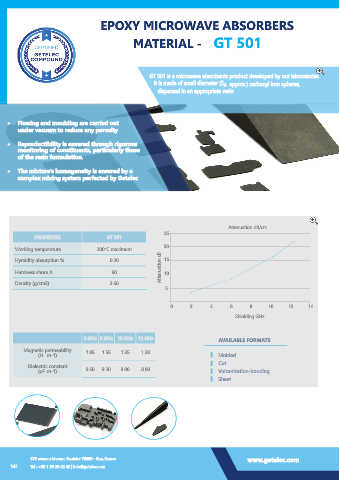

EPOXY MICROWAVE ABSORBERS

MATERIAL - GT 501

GT 501 is a microwave absorbents product developed by our laboratories.
It is made of small diameter (5µ approx.) carbonyl iron spheres,
dispersed in an appropriate resin.

• Flowing and moulding are carried out
under vacuum to reduce any porosity

• Reproductibility is ensured through rigorous
monitoring of constituents, particularly those
of the resin formulation.

• The mixture’s homogeneity is ensured by a
complex mixing system perfected by Getelec

Attenuation dB/cm
25
PROPERTIES GT 501

Working temperature 200°C maximum 20
Attenuation dB
Hymidity absorption % 0.20 15

Hardness shore A 90 10
Density (g/cm3) 3.60
5

0 2 4 6 8 10 12 14

Shielding GHz

2 GHz 6 GHz 10 GHz 12 GHz AVAILABLE FORMATS

Magnetic permeability
(H . m-1) 1.85 1.55 1.35 1.30 Molded
Cut
Dielectric constant 9.50 9.20 9.00 8.90
(pF. m-1) Vulcanization-bonding
Sheet
