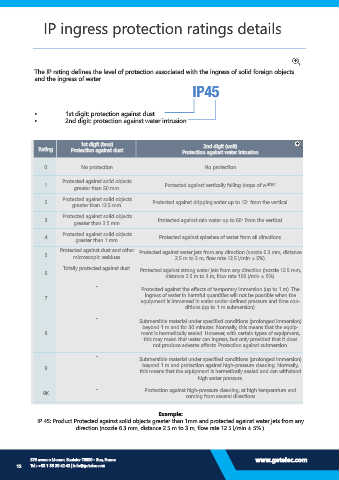

IP ingress protection ratings details

The IP rating defines the level of protection associated with the ingress of solid foreign objects
and the ingress of water.
IP45

• 1st digit: protection against dust
• 2nd digit: protection against water intrusion

1st digit (tens) 2nd digit (unit)
Rating Protection against dust Protection against water intrusion

0 No protection No protection

Protected against solid objects
1 Protected against vertically falling drops of water.
greater than 50 mm.

2 Protected against solid objects Protected against dripping water up to 15° from the vertical.
greater than 12.5 mm.
Protected against solid objects
3 Protected against rain water up to 60° from the vertical.
greater than 2.5 mm.
Protected against solid objects
4 Protected against splashes of water from all directions.
greater than 1 mm.
Protected against dust and other Protected against water jets from any direction (nozzle 6.3 mm, distance
5 microscopic residues. 2.5 m to 3 m, flow rate 12.5 l/min ± 5%).

Totally protected against dust. Protected against strong water jets from any direction (nozzle 12.5 mm,
6
distance 2.5 m to 3 m, flow rate 100 l/min ± 5%).
- Protected against the effects of temporary immersion (up to 1 m). The
ingress of water in harmful quantities will not be possible when the
7
equipment is immersed in water under defined pressure and time con-
ditions (up to 1 m submersion).
- Submersible material under specified conditions (prolonged immersion)
beyond 1 m and for 30 minutes. Normally, this means that the equip-
8 ment is hermetically sealed. However, with certain types of equipment,
this may mean that water can ingress, but only provided that it does
not produce adverse effects. Protection against submersion.

- Submersible material under specified conditions (prolonged immersion)
beyond 1 m and protection against high-pressure cleaning. Normally,
9
this means that the equipment is hermetically sealed and can withstand
high water pressure.
- Protection against high-pressure cleaning, at high temperature and
9K
coming from several directions

Example:
IP 45: Product Protected against solid objects greater than 1mm and protected against water jets from any
direction (nozzle 6.3 mm, distance 2.5 m to 3 m, flow rate 12.5 l/min ± 5% ).
